Reassembly

CLUTCH: CLUTCH RELEASE CYLINDER: REASSEMBLY

1. INSTALL RELEASE CYLINDER BLEEDER PLUG

(a) Install the release cylinder bleeder plug to the cylinder body.

Torque : 11 Nm (110 kgf-cm, 8 ft-lbf)

(b) Install the bleeder plug cap to the bleeder plug.

2. INSTALL RELEASE CYLINDER PISTON

(a) Install a new spring to the cylinder body.

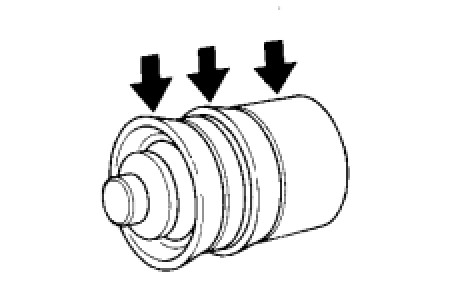

(b) Apply lithium soap base glycol grease to the portions shown in the illustration.





(c) Install a new piston to the cylinder body.

NOTICE:
Be careful not to damage the inside of the cylinder body.

(d) Install the push rod to a new boot.

(e) Install the boot (with push rod) to the cylinder body.
