Disassembly

CLUTCH: CLUTCH RELEASE CYLINDER: DISASSEMBLY

1. REMOVE RELEASE CYLINDER PISTON

(a) Remove the boot from the cylinder body.

(b) Remove the push rod from the cylinder body.

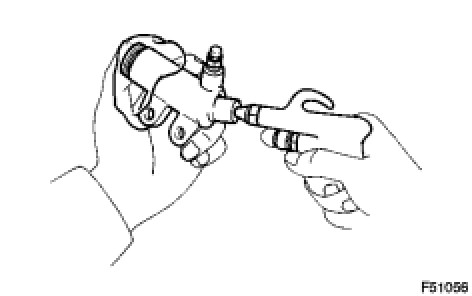

(c) Using compressed air, remove the piston together with the spring from the cylinder body.





NOTICE:
Be careful not to damage the inside of the cylinder body.

2. REMOVE RELEASE CYLINDER BLEEDER PLUG

(a) Remove the bleeder plug cap from the bleeder plug.

(b) Remove the release cylinder bleeder plug from the cylinder body.
