Removal

CLUTCH: CLUTCH MASTER CYLINDER: REMOVAL

1. PRECAUTION

Service Precautions

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment Service Precautions.

3. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination) Removal

4. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) Removal

5. REMOVE FRONT DOOR OPENING TRIM COVER LH Removal

6. REMOVE SIDE INSTRUMENT PANEL LH Removal

7. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

8. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal

9. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY Removal

10. DISCONNECT WIRE HARNESS

(a) Disconnect the 3 connectors and clamp.





11. DISCONNECT CLUTCH RESERVOIR TUBE

(a) Disconnect the clutch reservoir tube.





HINT
Use a container to catch the fluid.

12. DISCONNECT CLUTCH LINE

(a) Using SST, disconnect the clutch line from the clutch master cylinder.





SST : 09023-00101

HINT
Use a container to catch the fluid.

13. REMOVE CLUTCH PEDAL SUPPORT SUB-ASSEMBLY

(a) Remove the 2 nuts, bolt and clutch pedal support.





14. REMOVE CLUTCH PEDAL SWITCH ASSEMBLY

(a) Remove the nut and clutch pedal switch assembly from the clutch pedal support.

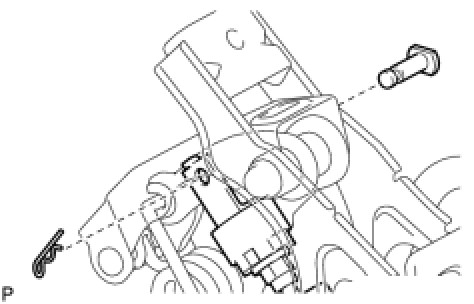

15. REMOVE CLUTCH MASTER CYLINDER PUSH ROD CLEVIS PIN

(a) Remove the clip and pin.





16. REMOVE CLUTCH MASTER CYLINDER ASSEMBLY

(a) Remove the clutch reservoir tube.





(b) Remove the 2 bolts and clutch master cylinder assembly.
