Removal

A760H AUTOMATIC TRANSMISSION: TRANSMISSION WIRE: REMOVAL

1. DRAIN AUTOMATIC TRANSMISSION FLUID Removal

2. REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY (for 4GR-FSE)

(a) Remove the 4 bolts, 2 nuts and No. 1 exhaust pipe support bracket sub-assembly from the automatic transmission assembly.





3. REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY

NOTICE:
Some fluid will remain in the oil pan.

(a) Remove the 20 bolts, oil pan, and gasket.

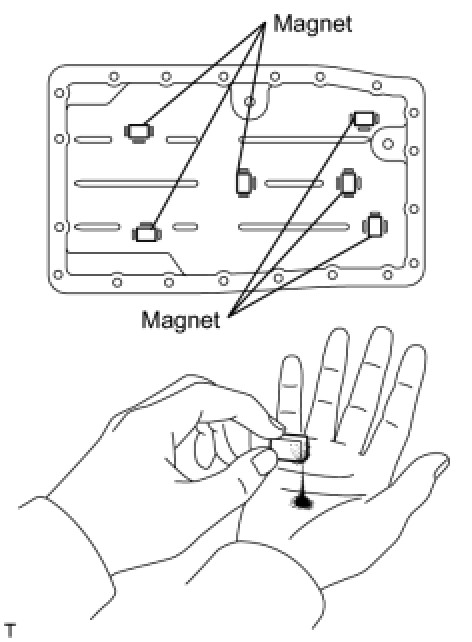

(b) Remove the 6 magnets from the oil pan.





(c) Examine particles in the pan.

(1) Remove the magnets and use them to collect steel particles. Carefully look for the foreign matter and particles in the pan and on the magnets to anticipate the type of wear which might be found in the transmission.

Steel (magnetic): bearing, gear, and clutch plate wear

Brass (non-magnetic): bushing wear

4. REMOVE VALVE BODY OIL STRAINER ASSEMBLY

(a) Remove the 4 bolts and oil strainer.

NOTICE:
Be careful as some fluid will come out of the oil strainer.

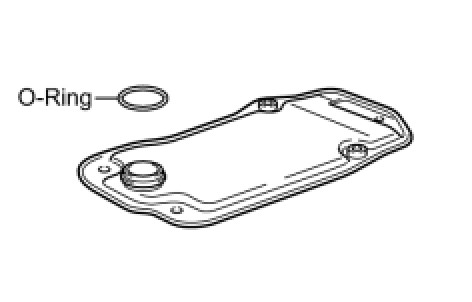

(b) Remove the O-ring from the oil strainer.





5. DISCONNECT TRANSMISSION WIRE

(a) Remove the bolt and temperature sensor clamp separate the ATF temperature sensor.





(b) Remove the 2 bolts and disconnect the 2 clamps.





(c) Disconnect the 9 connectors from the solenoid valves.





6. REMOVE TRANSMISSION WIRE

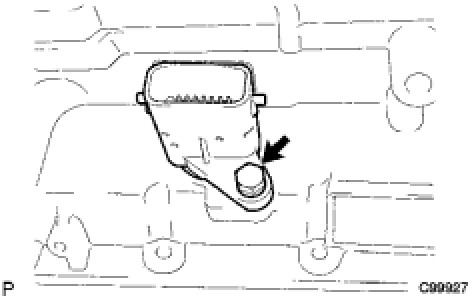

(a) Disconnect the transmission wire connector.





(b) Remove the bolt and pull out the transmission wire.

(c) Remove the O-ring from the transmission wire.
