A760H AUTOMATIC TRANSMISSION: TRANSMISSION WIRE: INSTALLATION

1. INSTALL TRANSMISSION WIRE

(a) Coat a new O-ring of the transmission wire connector with ATF.

(b) Install the O-ring.

(c) Install the transmission wire with the bolt.

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

(d) Connect the transmission wire connector.

2. CONNECT TRANSMISSION WIRE

(a) Connect the 9 connectors to the solenoid valves.

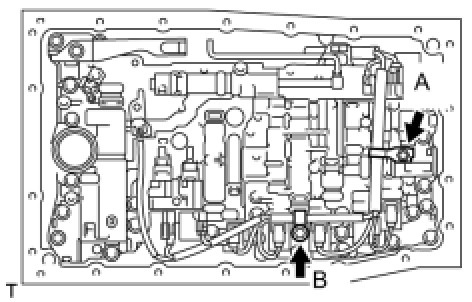

(b) Install the 2 clamps with the 2 bolts.





Bolt A - Torque : 6.4 Nm (65 kgf-cm, 57 in-lbf)

Bolt B - Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(c) Install the ATF temperature sensor and clamp with the bolt.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY

(a) Coat a new O-ring with ATF and install it to the oil strainer.

(b) Install the oil strainer with the 4 bolts.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

4. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY

(a) Install the 6 magnets in the oil pan.





(b) Install a new gasket and the oil pan with the 20 bolts to the transmission case.

Torque : 4.4 Nm (45 kgf-cm, 39 in-lbf)

5. INSTALL NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY (for 4GR-FSE)

(a) Install the No. 1 exhaust pipe support bracket sub-assembly to the automatic transmission assembly with the 4 bolts and 2 new nuts.





Bolt A - Torque : 43 Nm (438 kgf-cm, 32 ft-lbf)

Bolt B - Torque : 39 Nm (398 kgf-cm, 29 ft-lbf)

6. ADD AUTOMATIC TRANSMISSION FLUID
