Removal

A760H AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY: REMOVAL

1. DRAIN AUTOMATIC TRANSMISSION FLUID Removal

2. REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY (for 4GR-FSE) Removal

3. REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY Removal

4. REMOVE VALVE BODY OIL STRAINER ASSEMBLY Removal

5. DISCONNECT TRANSMISSION WIRE Removal

6. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

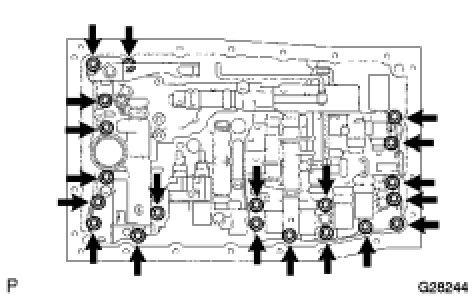

(a) Remove the 20 bolts and valve body.

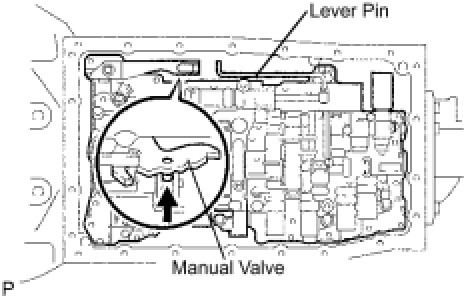

(b) Separate the lever pin from the manual valve.





NOTICE:
* Do not remove the check ball and each piston.
* Cover the valve body with a plastic bag, etc. to prevent dust or trash from entering.

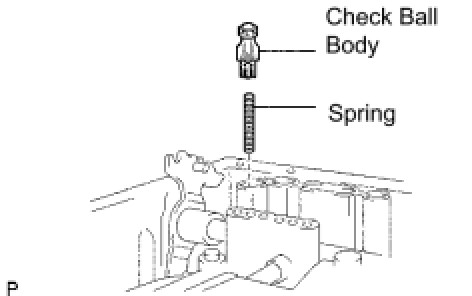

(c) Remove the check ball body and spring.





NOTICE:
Do not drop the check ball body and spring.
