A760H AUTOMATIC TRANSMISSION: VALVE BODY ASSEMBLY: INSTALLATION

1. INSTALL TRANSMISSION VALVE BODY ASSEMBLY

(a) Install the check ball body and spring.

NOTICE:
Do not drop the check ball body and spring.

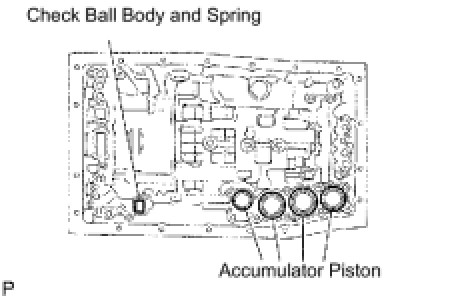

(b) Check the accumulator piston, check ball body and spring as shown in the illustration.





(c) Align the groove of the manual valve with the pin of the lever.

(d) Install the 20 bolts.





Torque : 11 Nm (112 kgf-cm, 8 ft-lbf)

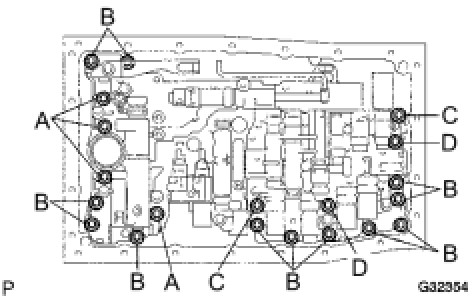

Bolt length:

Bolt A
36 mm (1.42 in.)

Bolt B
25 mm (0.98 in.)

Bolt C
45 mm (1.77 in.)

Bolt D
50 mm (1.97 in.)

2. CONNECT TRANSMISSION WIRE Installation

3. INSTALL VALVE BODY OIL STRAINER ASSEMBLY Installation

4. INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY Installation

5. INSTALL NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY (for 4GR-FSE) Installation

6. ADD AUTOMATIC TRANSMISSION FLUID

Procedures
