Home >> Lexus >> 2012 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Testing and Inspection >> Initial Inspection and Diagnostic Overview

Initial Inspection and Diagnostic Overview

SUSPENSION: SUSPENSION SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT

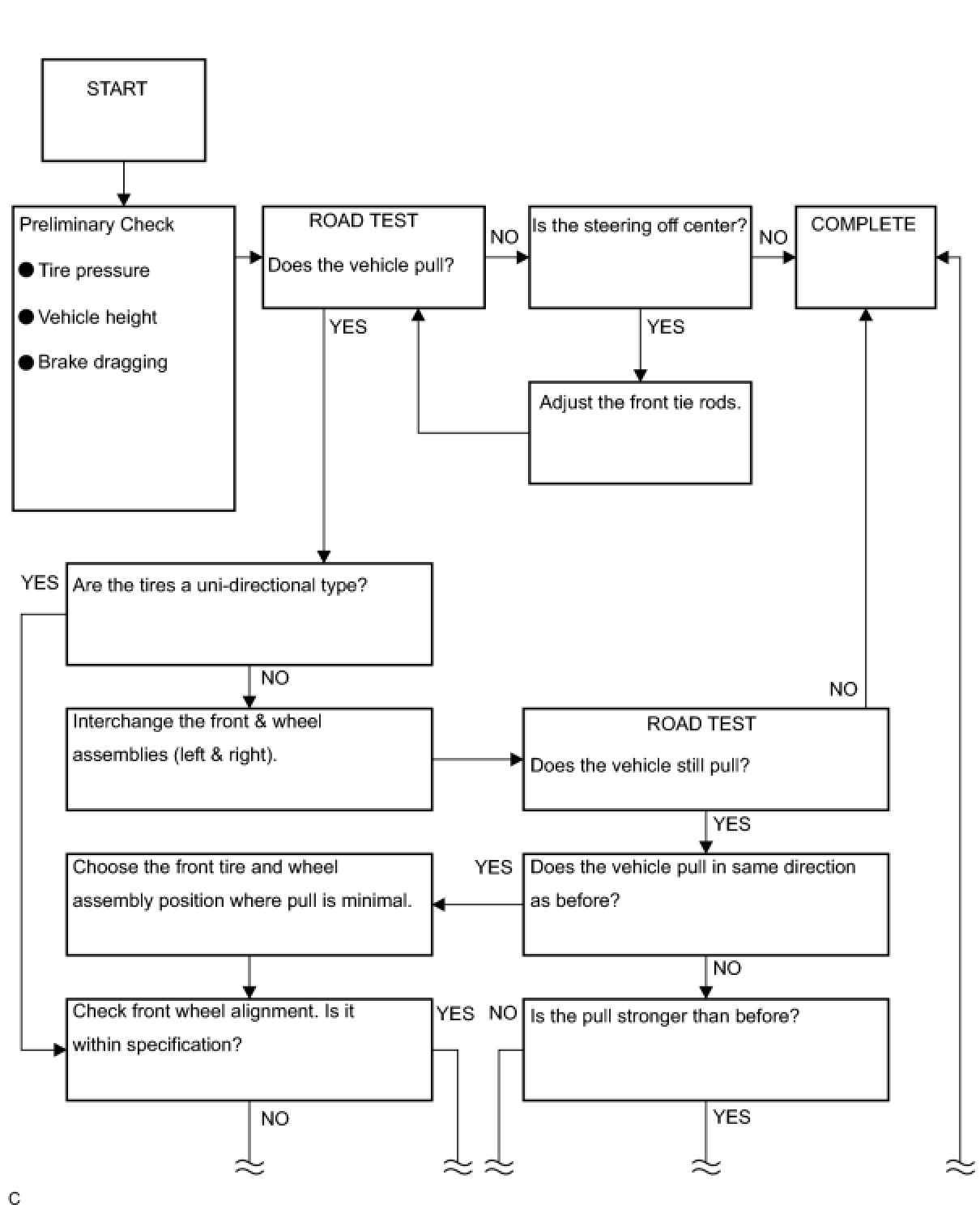

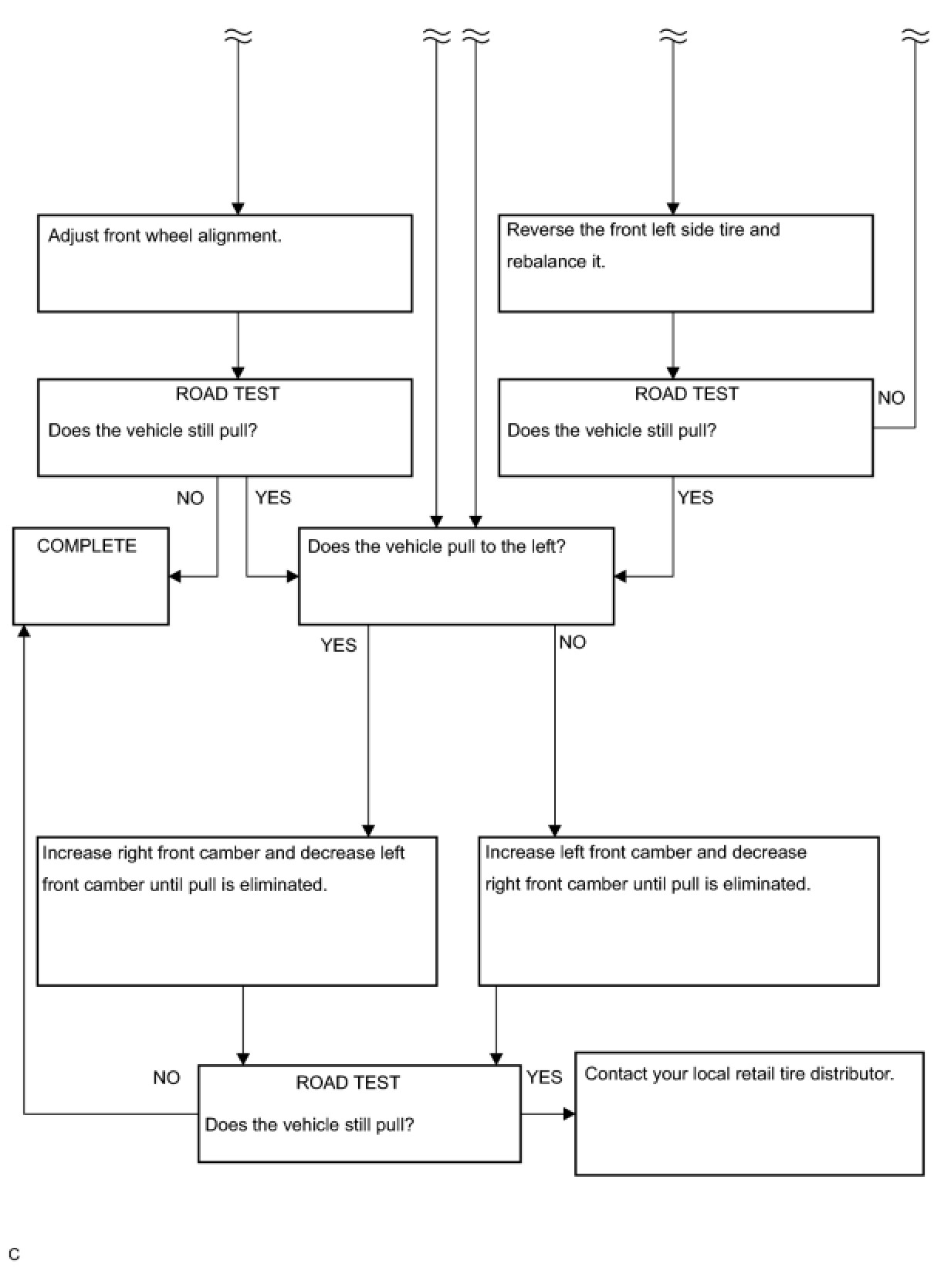

This is a flow chart for vehicle pull.
