Front Shock Absorber

SUSPENSION: FRONT SHOCK ABSORBER (for 4WD): DISPOSAL

1. DISPOSE OF FRONT SHOCK ABSORBER

(a) Fully extend the front shock absorber rod.

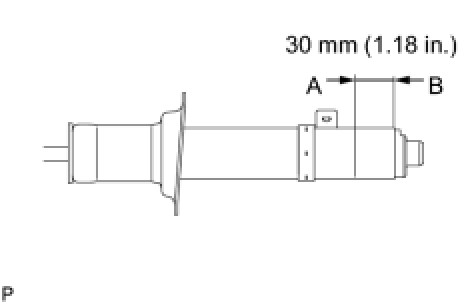

(b) Using a drill, make a hole in the cylinder between A and B as shown in the illustration to discharge the gas inside.

NOTICE:
Be careful when drilling because shards of metal may fly about, so always use proper safety equipment.

HINT
The gas is colorless, odorless and non-poisonous.
