Removal

SUSPENSION: TOE CONTROL LINK: REMOVAL

1. REMOVE REAR WHEEL

2. REMOVE TOE CONTROL LINK

(a) Disconnect the skid control sensor connector.





(b) Remove the bolt and separate the skid control sensor wire from the toe control link.

(c) Remove the nut on the axle carrier side.

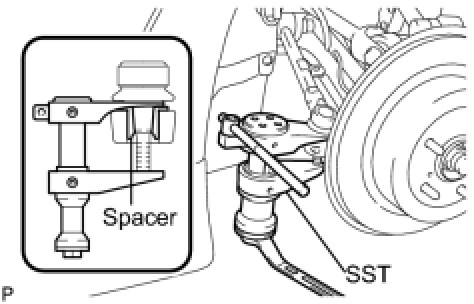

(d) Using SST, disconnect the toe control link.





SST : 09628-00011

NOTICE:
* Securely tie the string of the SST to the vehicle.
* Do not damage the dust cover.
* Securely set the SST on the spacer of the axle carrier.
* If the spacer of the axle carrier comes off, replace the axle carrier with a new one.

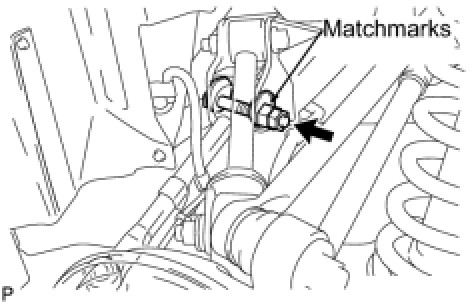

(e) Put matchmarks on the rear No. 2 suspension toe adjust plate and rear suspension member.





(f) Remove the nut, rear suspension toe adjust cam assembly, rear No. 2 suspension toe adjust plate, and toe control link.
