Installation

SUSPENSION: REAR UPPER NO. 2 CONTROL ARM: INSTALLATION

1. TEMPORARILY TIGHTEN REAR UPPER NO. 2 CONTROL ARM

(a) Install the stud of the rear upper No. 2 control arm and temporarily tighten a new nut.

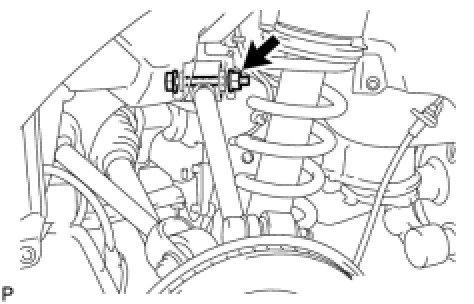

(b) Install the rear upper control arm and temporarily tighten the bolt, nut, and washer.

HINT
Push the axle carrier downward.

(c) Fully tighten the nut of the rear upper No. 2 control arm.





Torque : 70 Nm (714 kgf-cm, 52 ft-lbf)

2. TEMPORARILY TIGHTEN REAR SHOCK ABSORBER WITH COIL SPRING Installation

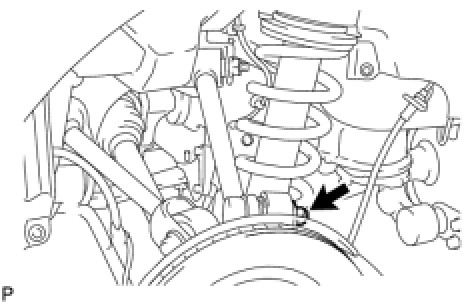

3. TEMPORARILY TIGHTEN REAR STABILIZER LINK

4. STABILIZE SUSPENSION STABILIZE SUSPENSION

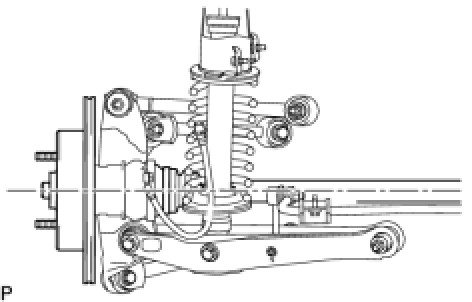

(a) Jack up the axle carrier, with a wooden block placed between the jack and axle carrier, to apply a load to the suspension so that the rear drive shaft assembly becomes level.





5. FULLY TIGHTEN REAR UPPER NO. 2 CONTROL ARM

6. FULLY TIGHTEN REAR SHOCK ABSORBER WITH COIL SPRING Installation

7. FULLY TIGHTEN REAR STABILIZER LINK

8. INSTALL REAR WHEEL

9. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

Rear Wheel Alignment

10. INSPECT AND ADJUST HEADLIGHT AIMING

Adjustments
