Removal

SUSPENSION: REAR UPPER NO. 1 CONTROL ARM: REMOVAL

1. REMOVE REAR WHEEL

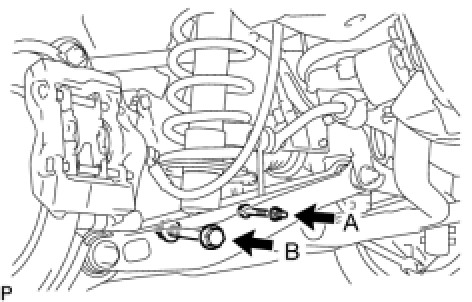

2. SEPARATE REAR STABILIZER LINK ASSEMBLY

(a) Remove the bolt and nut (A), and separate the rear stabilizer link assembly and the height control sensor link bracket from the rear No. 2 suspension arm.





3. SEPARATE REAR SHOCK ABSORBER WITH COIL SPRING

(a) Remove the bolt and nut (B), and separate the rear shock absorber with coil spring from the rear No. 2 suspension arm assembly.

4. REMOVE REAR UPPER NO. 1 CONTROL ARM

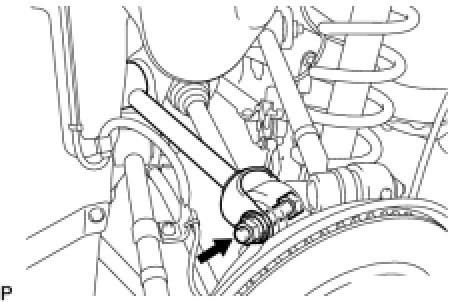

(a) Remove the bolt, nut, washer, and the rear No. 1 upper control arm from the rear axle carrier.





NOTICE:
Push the axle carrier downward.

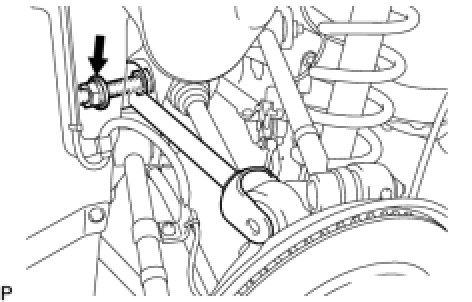

(b) Remove the bolts, nuts, washers, and the rear upper No. 1 control arm from the rear suspension member.
