Removal

SUSPENSION: REAR NO. 2 SUSPENSION ARM: REMOVAL

1. REMOVE REAR WHEEL

2. REMOVE REAR SUSPENSION MEMBER BRACE Removal

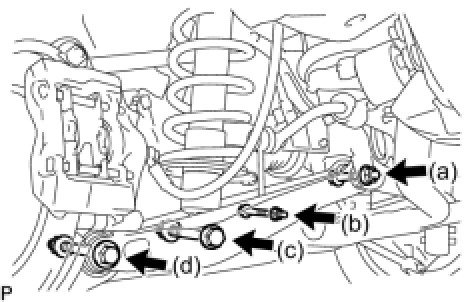

3. REMOVE REAR NO. 2 SUSPENSION ARM

(a) Remove the bolt and nut, and disconnect the rear stabilizer link assembly and the height control sensor link bracket.





(b) Remove the bolt and nut, and disconnect the rear shock absorber with coil spring.

NOTICE:
Turn the bolt while holding the nut.

(c) Remove the nut and bolt on the axle carrier side, and separate the rear No. 2 suspension arm.

NOTICE:
Turn the bolt while holding the nut.

(d) Remove the bolt, nut, and washer on the rear suspension member side, and remove the rear No. 2 suspension arm.
