Installation

SUSPENSION: REAR NO. 1 SUSPENSION ARM: INSTALLATION

1. TEMPORARILY TIGHTEN REAR NO. 1 SUSPENSION ARM

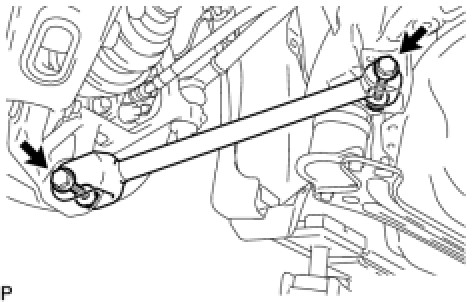

(a) Temporarily install the rear No. 1 suspension arm with the 2 bolts and 2 nuts.





HINT
Fully tighten the bolts after stabilizing the suspension.

2. STABILIZE SUSPENSION

(a) Jack up the axle carrier, with a wooden block placed between the jack and axle carrier, to apply a load to the rear suspension so that the rear drive shaft assembly becomes level.





3. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM

(a) Fully tighten the 2 bolts.

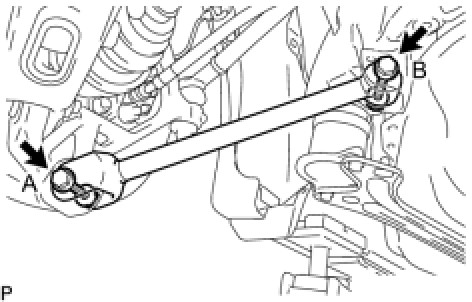

Bolt A - Torque : 95 Nm (970 kgf-cm, 70 ft-lbf)

Bolt B - Torque : 100 Nm (1020 kgf-cm, 74 ft-lbf)

NOTICE:
Turn the bolt while holding the nut.

4. INSTALL REAR FLOOR SIDE MEMBER COVER

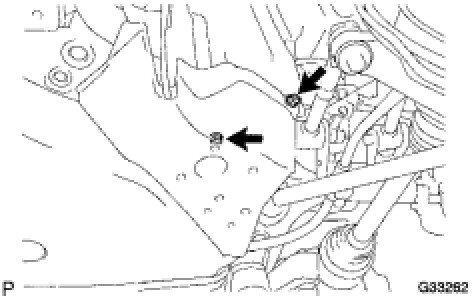

(a) Install the rear floor side member cover with the 2 screws.





5. INSTALL REAR WHEEL

Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)

6. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

Rear Wheel Alignment

7. INSPECT AND ADJUST HEADLIGHT AIMING

Adjustments
