SUSPENSION: FRONT UPPER SUSPENSION ARM: INSTALLATION

1. INSTALL FRONT UPPER SUSPENSION ARM

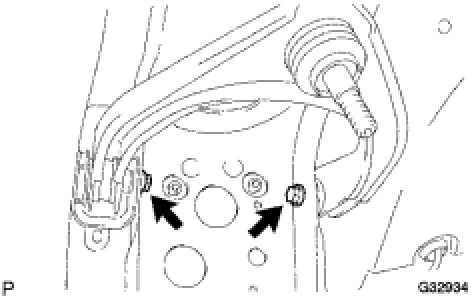

(a) Install the front upper suspension arm with the 2 bolts.





Torque : 49 Nm (500 kgf-cm, 36 ft-lbf)

2. INSTALL FRONT SHOCK ABSORBER WITH COIL SPRING (for 2WD) Installation

3. INSTALL FRONT SHOCK ABSORBER WITH COIL SPRING (for 4WD) Installation
