Steering Lock System

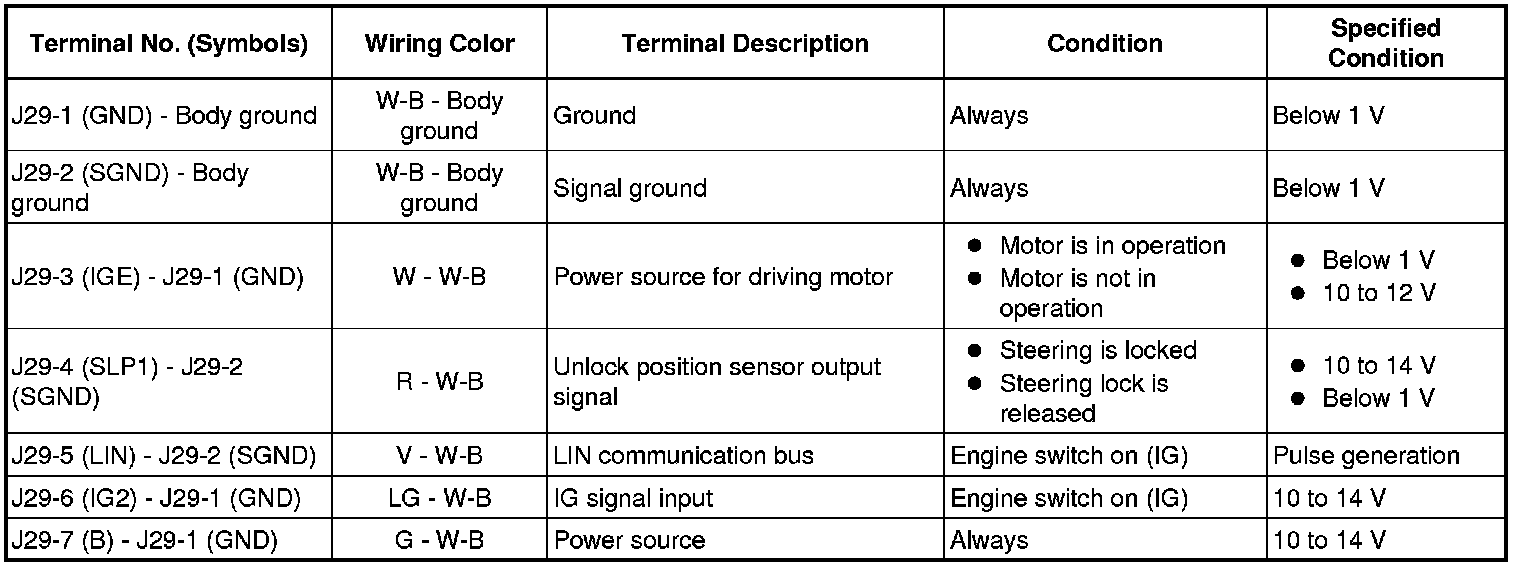

STEERING COLUMN: STEERING LOCK SYSTEM: TERMINALS OF ECU

1. STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)
