Home >> Lexus >> 2012 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Power Tilt and Power Telescopic Steering Column System

Power Tilt and Power Telescopic Steering Column System





STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: TERMINALS OF ECU

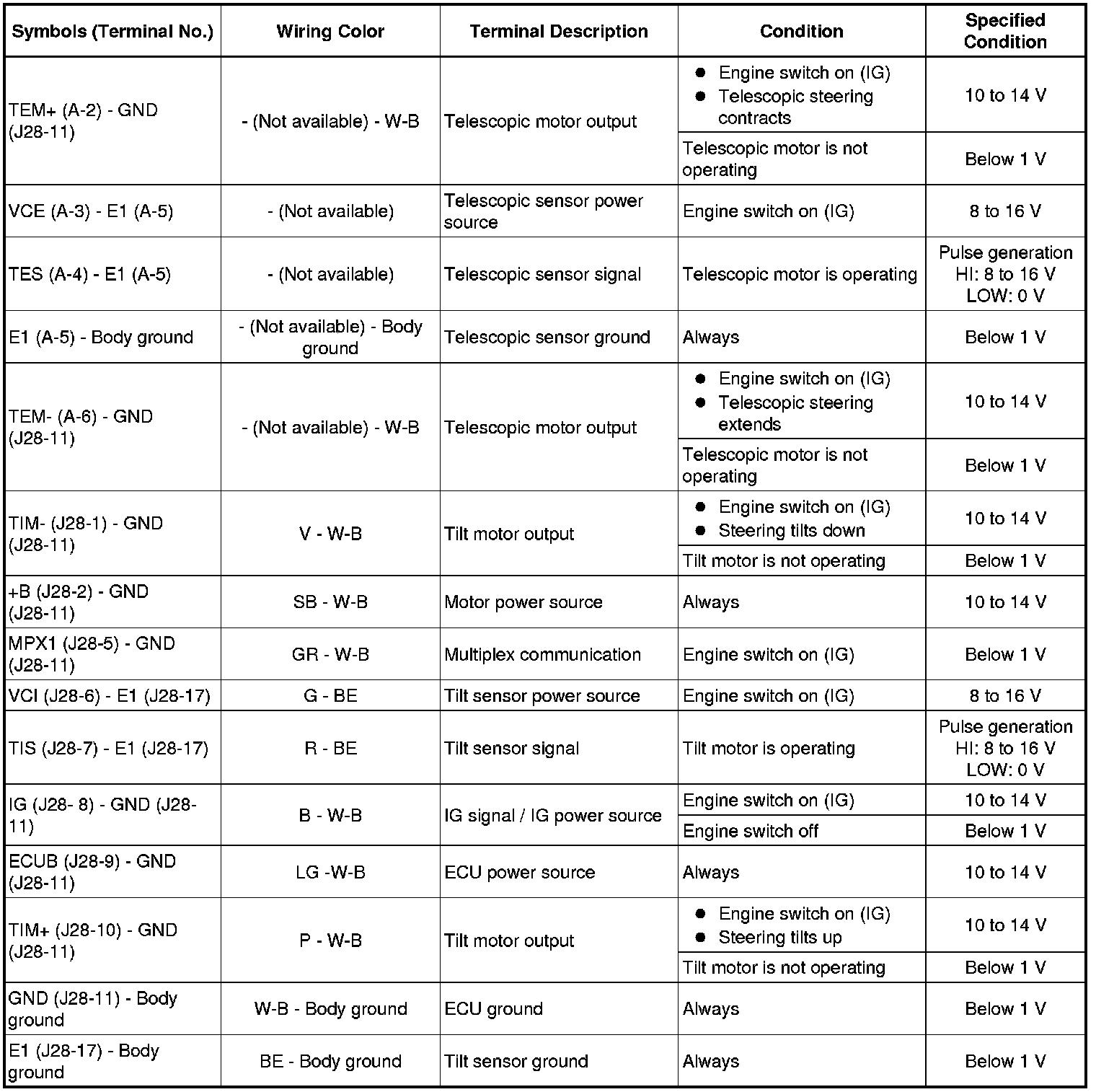

MULTIPLEX TILT & TELESCOPIC ECU:
