Tilt and Telescopic Manual Switch Circuit

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: Tilt and Telescopic Manual Switch Circuit
- Tilt and Telescopic Manual Switch Circuit

DESCRIPTION

The signals generated by operating the manual switch are sent to the multiplex tilt & telescopic ECU through the communication bus.

INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM (COMBINATION SWITCH)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Check the tilt and telescopic manual switch. Enter the following menus: Body Electrical / Combination Switch / Data List.

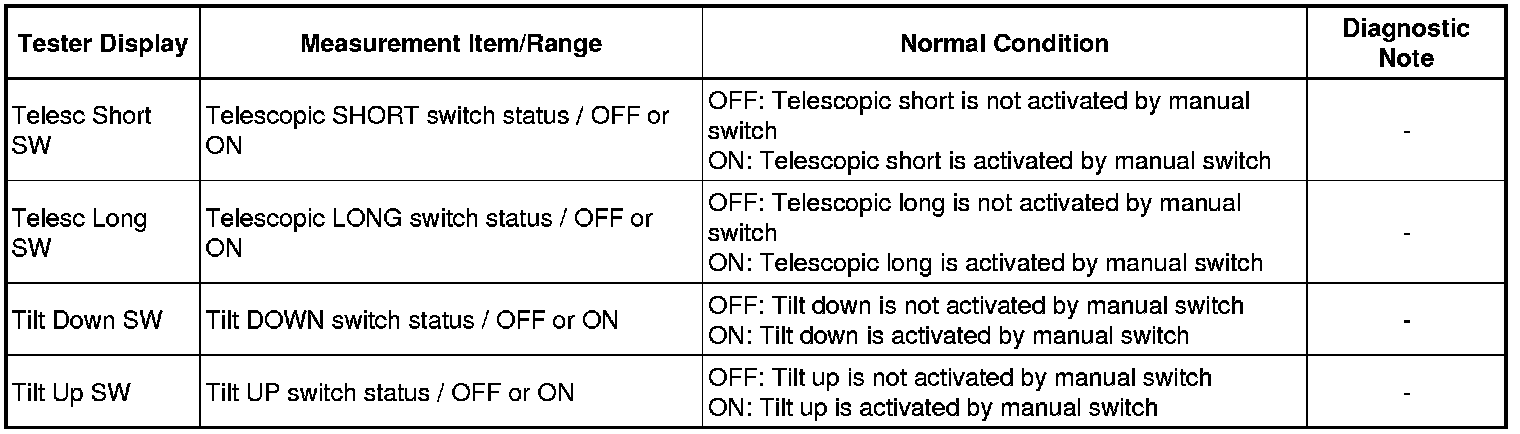

Combination Switch





OK:

"ON" is displayed on the Techstream screen when each switch is turned on.

"OFF" is displayed on the Techstream screen when each switch is turned off.

NG -- REPLACE TILT & TELESCOPIC SWITCH

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
