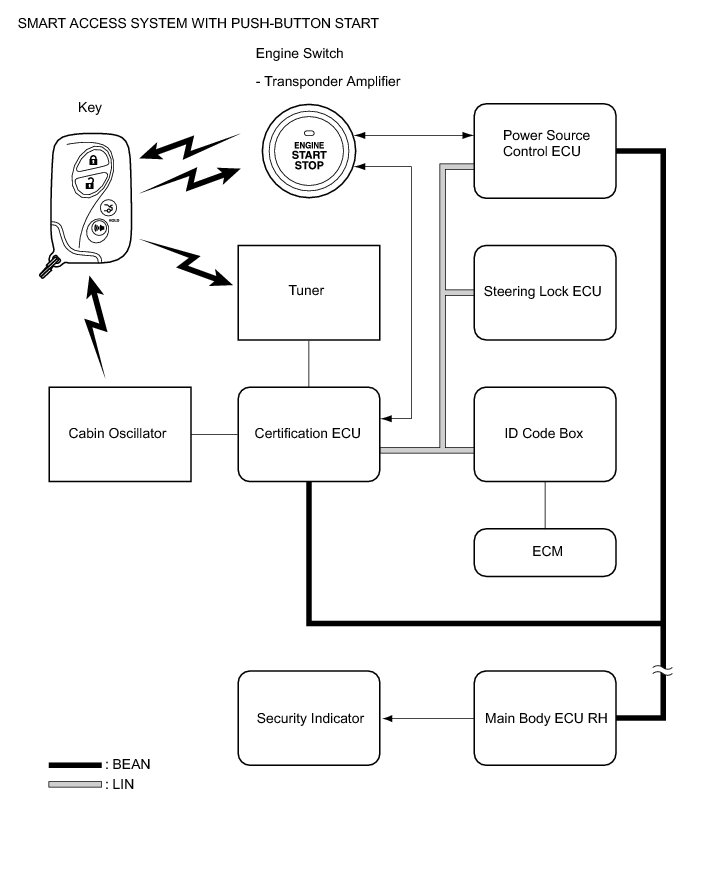

System Diagram





STEERING COLUMN: STEERING LOCK SYSTEM: SYSTEM DIAGRAM

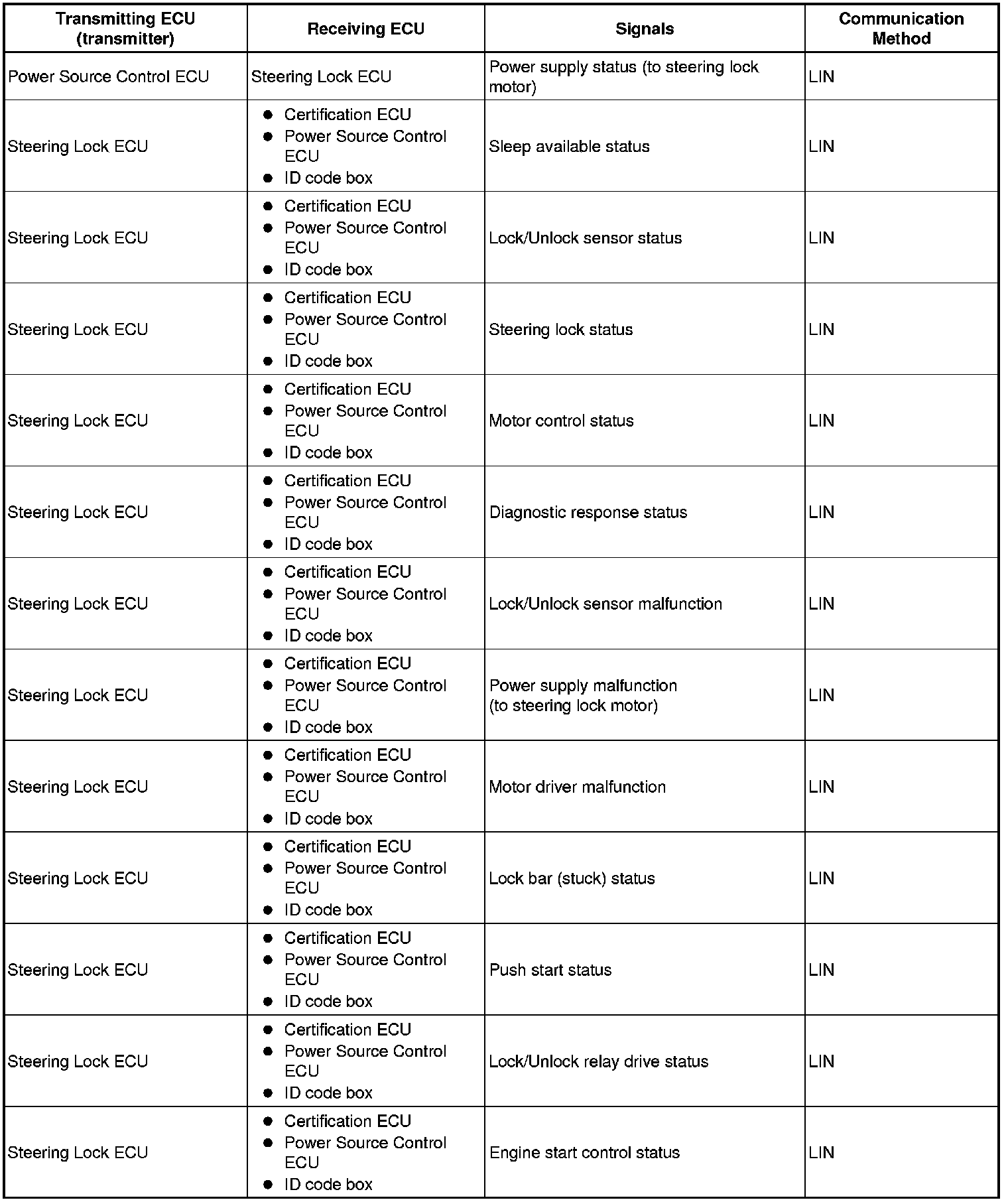

Input and output signals of each ECU
