On-Vehicle Inspection

4GR-FSE STARTING: SMART ACCESS SYSTEM WITH PUSH-BUTTON START: ON-VEHICLE INSPECTION

1. CHECK POWER SOURCE MODE CHANGE FUNCTION

(a) Check the function of the engine switch.

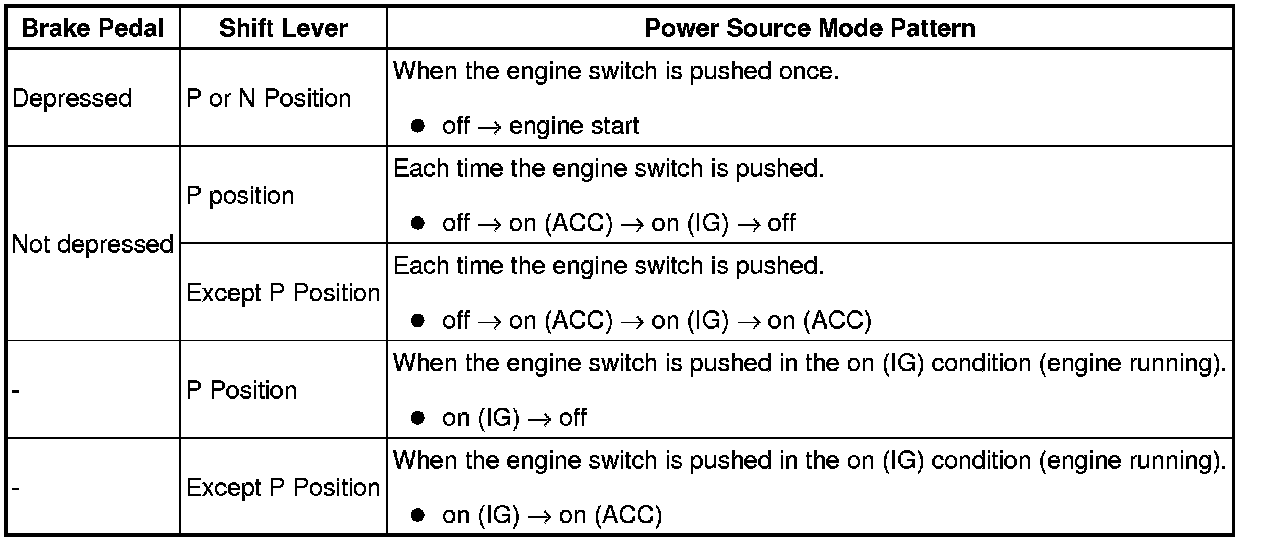

(1) A/T Models: Check that power source mode changes in accordance with the conditions of the shift position and brake pedal.

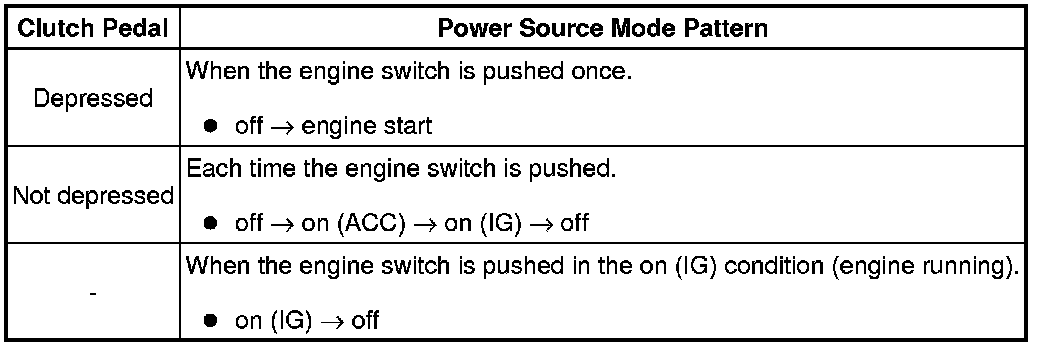

(2) M/T Models: Start function has different power source patterns to suit the clutch pedal condition.





(b) Check if power source mode changes without pressing the engine switch.

(1) A/T Models: With power source mode on (ACC) and the shift position in P, wait for at least 1 hour. Check that power source mode changes from on (ACC) to off automatically.

(2) M/T Models: With power source mode on (ACC), wait for at least 1 hour. Check that power source mode changes from on (ACC) to off automatically.

2. CHECK INDICATOR CONDITION





(a) Check the indicator on the engine switch.

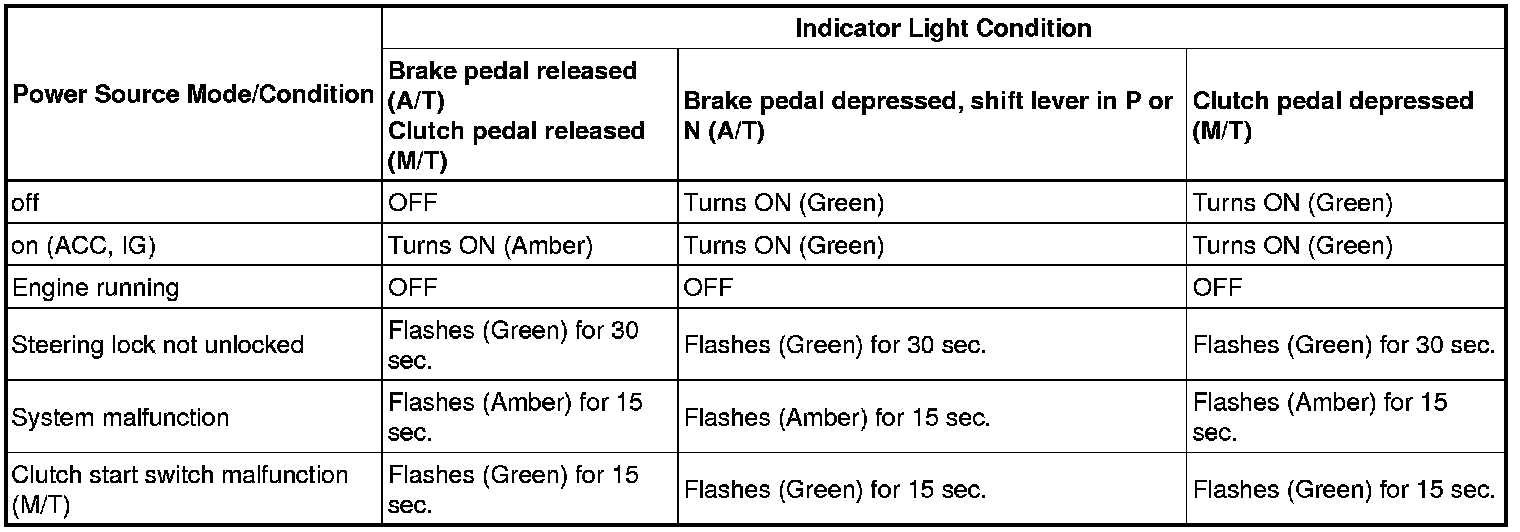

(1) Check that the engine switch indicator turns on and changes color according to the table below.
