Start / Stop Switch: Testing and Inspection

4GR-FSE STARTING: ENGINE SWITCH: INSPECTION

1. INSPECT ENGINE SWITCH

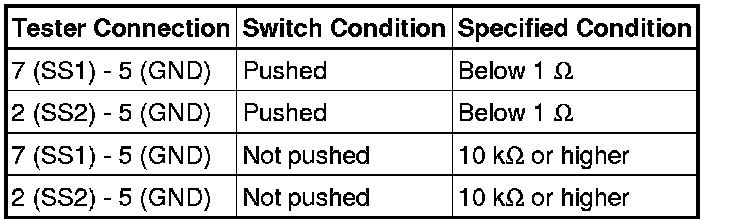

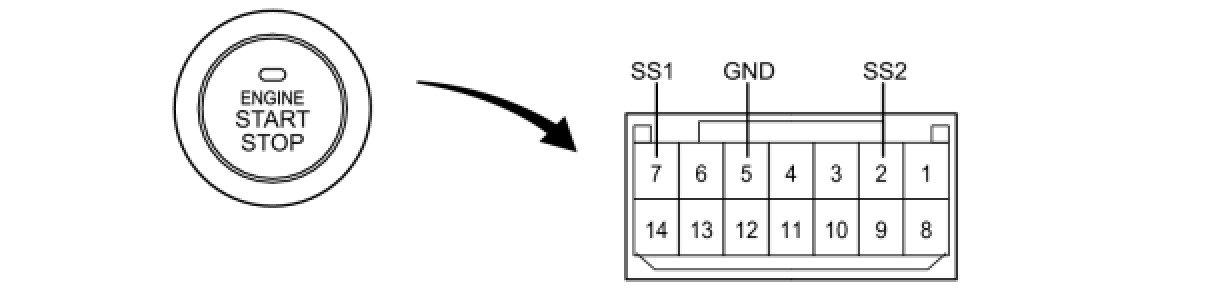

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the result is not as specified, replace the engine switch.

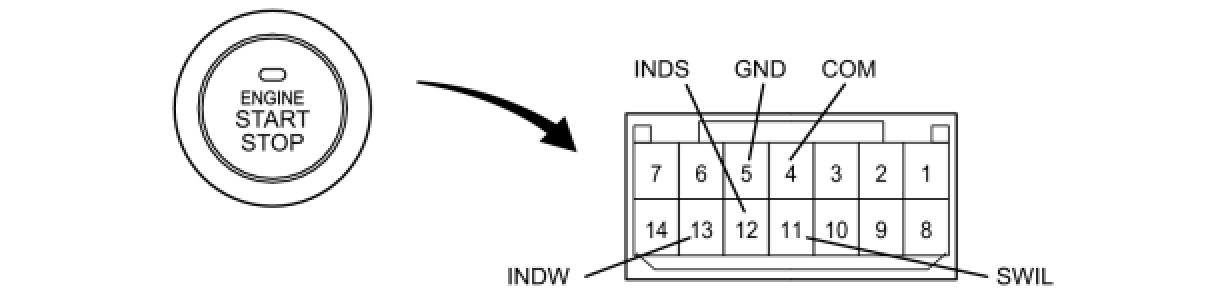

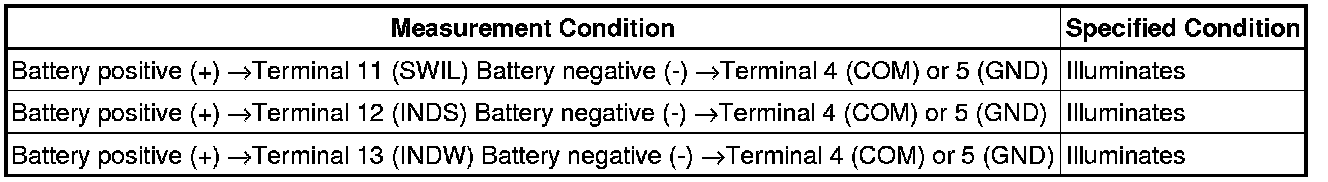

(b) Apply battery voltage between the terminals of the switch, and check the illumination condition of the switch.





Standard Resistance:





If the result is not as specified, replace the engine switch.
