Torque Specifications





SERVICE SPECIFICATIONS: PROPELLER SHAFT: TORQUE SPECIFICATIONS

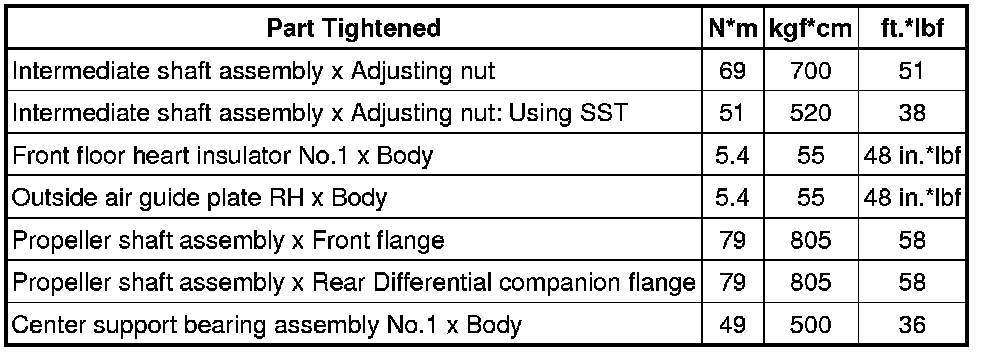

for 2GR-FSE 2WD

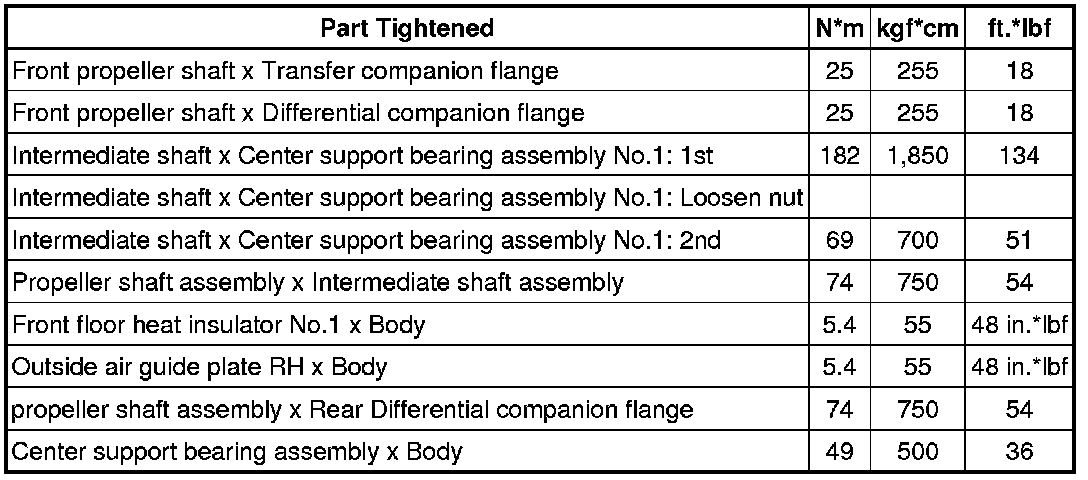

for 2GR-FSE 4WD

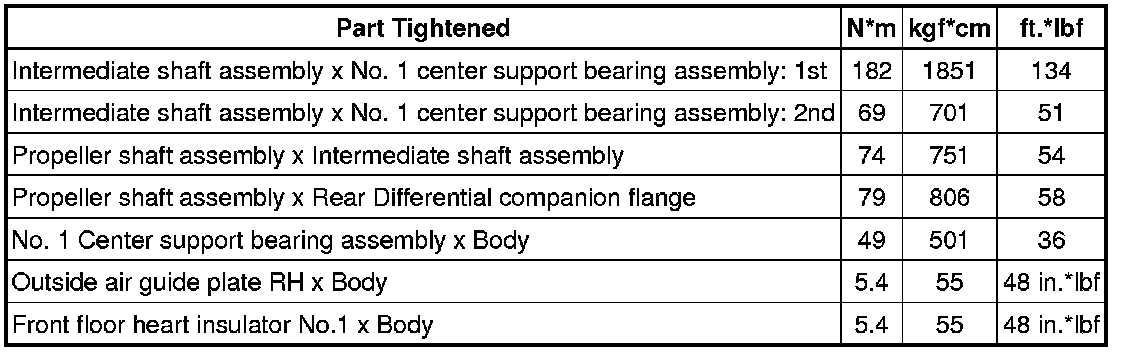

for 4GR-FSE
