Service Data

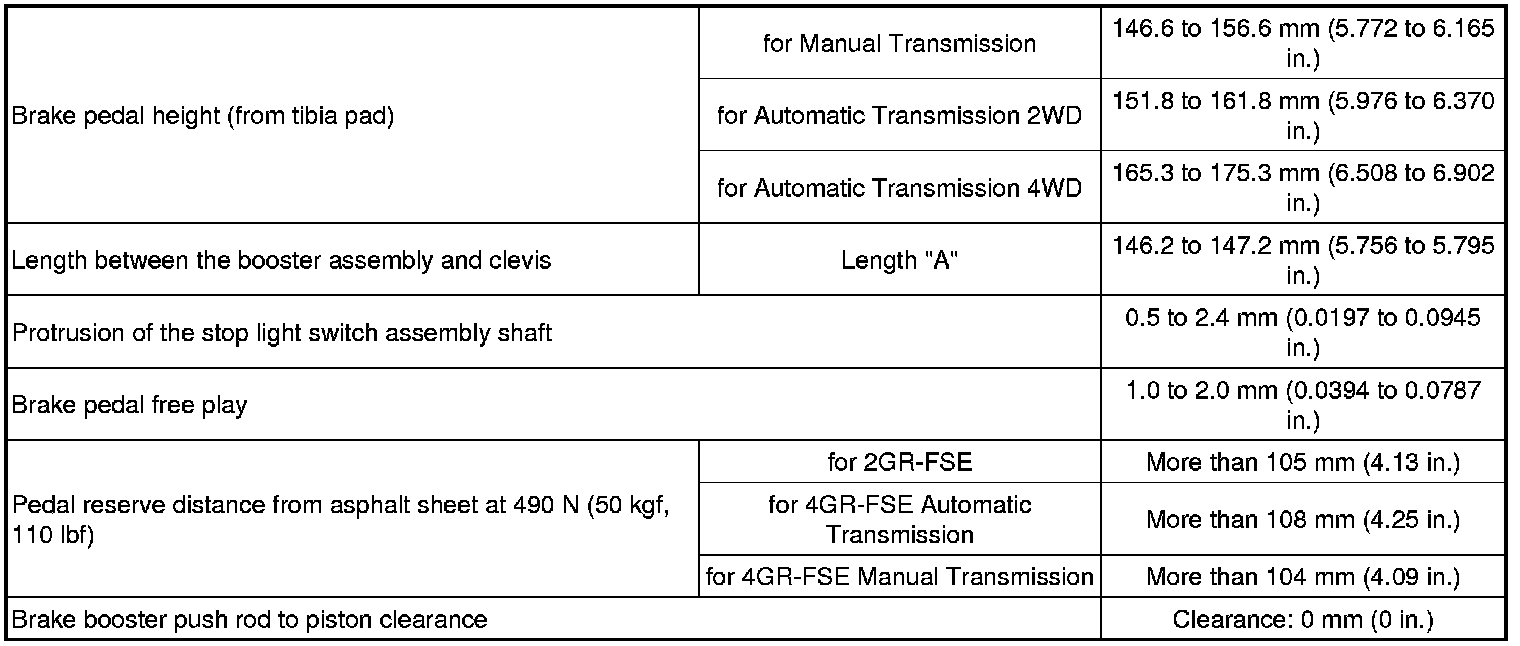

SERVICE SPECIFICATIONS: BRAKE: SERVICE DATA

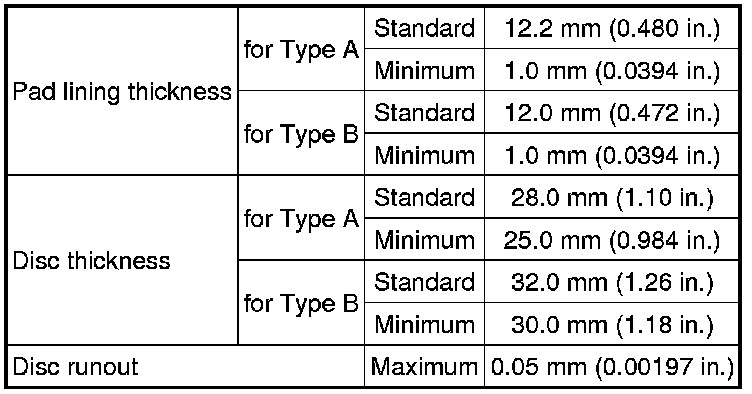

Front Brake (for 2GR-FSE)

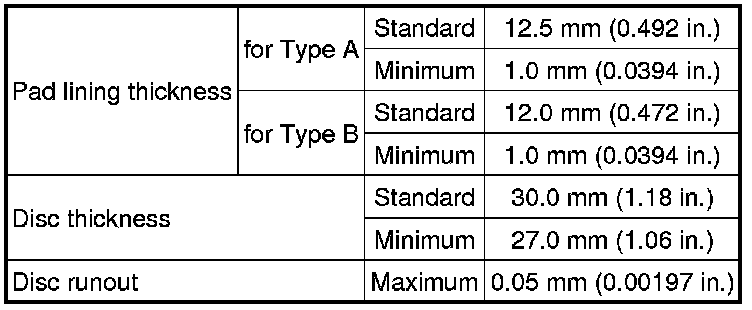

Front Brake (for 4GR-FSE)





Rear Brake (for Ventilated Disc)

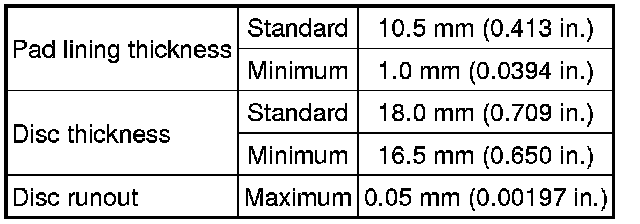

Rear Brake (for Solid Disc)
