4GR-FSE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal

2. REMOVE ENGINE ROOM SIDE COVER LH Removal

3. REMOVE ENGINE ROOM SIDE COVER RH Removal

4. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

5. REMOVE FRONT FENDER PROTECTOR UPPER LH Removal

6. REMOVE FRONT FENDER PROTECTOR UPPER RH Removal

7. REMOVE ROOF DRIP SIDE FINISH MOULDING LH

8. REMOVE ROOF DRIP SIDE FINISH MOULDING RH Removal

9. REMOVE FRONT WIPER ARM HEAD CAP Removal

10. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH Removal

11. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH Removal

12. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Removal

13. DRAIN ENGINE COOLANT Testing and Inspection

14. DISCONNECT NO. 2 VENTILATION HOSE Removal

15. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE Removal

16. REMOVE THROTTLE BODY Removal

17. REMOVE COLD START INJECTOR Removal

18. REMOVE INTAKE AIR SURGE TANK ASSEMBLY Removal

19. REMOVE INTAKE MANIFOLD Removal

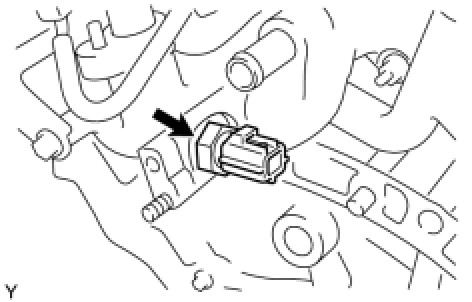

20. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

(a) Disconnect the engine coolant temperature sensor connector.





(b) Remove the engine coolant temperature sensor.

(c) Remove the gasket from the engine coolant temperature sensor.
