Fuel Door Switch: Testing and Inspection

ENGINE HOOD / DOOR: FUEL LID OPENER SWITCH: INSPECTION

1. INSPECT FUEL LID OPENER SWITCH

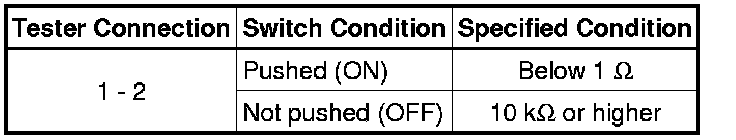

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





If the result is not as specified, replace the switch.
