Occupant Detection Sensor (for Manual Seat)





SEAT BELT: OCCUPANT DETECTION SENSOR (for Manual Seat): INSPECTION

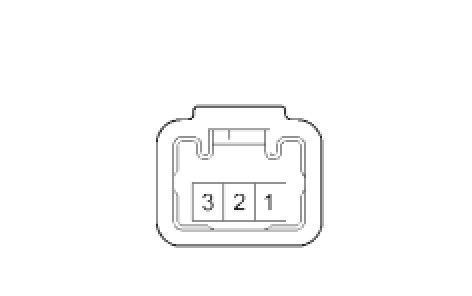

1. INSPECT OCCUPANT DETECTION SENSOR (SEPARATE TYPE FRONT SEAT CUSHION PAD)

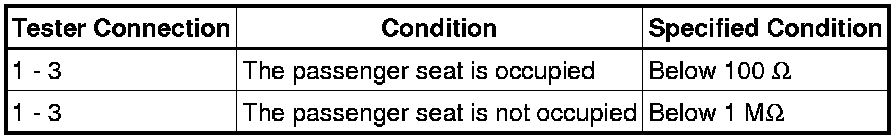

(a) Measure the resistance according to the value(s) in the table below.

Resistance:
