Removal

SEAT BELT: OCCUPANT DETECTION SENSOR (for Manual Seat): REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment. Service Precautions

2. REMOVE FRONT SEAT HEADREST ASSEMBLY

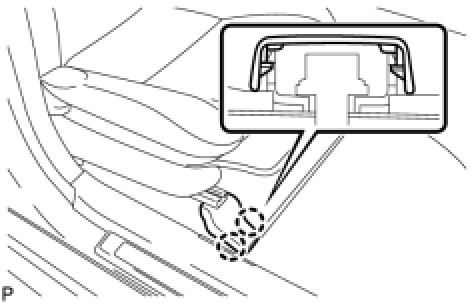

3. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER RH

(a) Lift up the seat track adjusting handle and move the seat to the rearmost position.

(b) Using a screwdriver, detach the 2 claws and remove the front outer seat track bracket cover RH.

HINT
Tape the screwdriver tip before use.

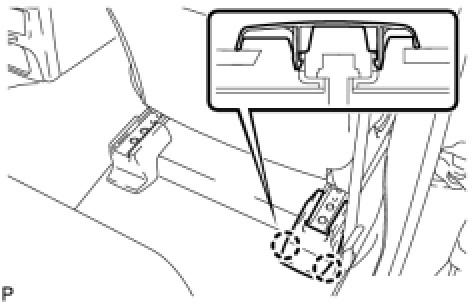

4. REMOVE FRONT INNER SEAT TRACK BRACKET COVER RH

5. REMOVE REAR OUTER SEAT TRACK COVER RH

(a) Lift up the seat track adjusting handle and move the seat to the position farthest forward.

(b) Using a screwdriver, detach the 2 claws and remove the rear outer seat track cover RH.

HINT
Tape the screwdriver tip before use.

6. REMOVE REAR INNER SEAT TRACK COVER RH

7. REMOVE FRONT SEAT ASSEMBLY RH

(a) Lift up the seat track adjusting handle and move the seat to the rearmost position.

(b) Remove the 2 bolts on the front seat track bracket.

(c) Lift up the seat track adjusting handle and move the seat to the position farthest forward.

(d) Remove the 2 bolts on the rear seat track bracket.

(e) Lift up the seat track adjusting handle and move the seat to the center position. Also, operate the reclining adjuster release handle and move the seatback to the upright position.

(f) Disconnect the connectors under the seat. Then remove the front seat.

8. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH

(a) Disconnect the connector and detach the 3 clamps.

(b) Remove the nut and front seat inner belt assembly RH.

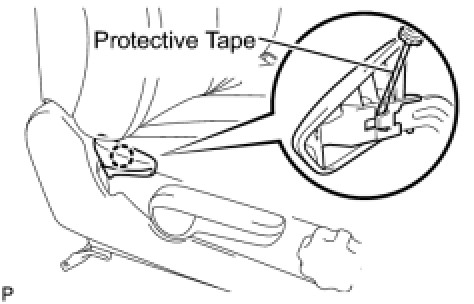

9. REMOVE RECLINING ADJUSTER RELEASE HANDLE RH

(a) Lift the reclining adjuster release handle.

(b) Using a screwdriver, disengage the claw and remove the reclining adjuster release handle.

HINT
Tape the screwdriver tip before use.

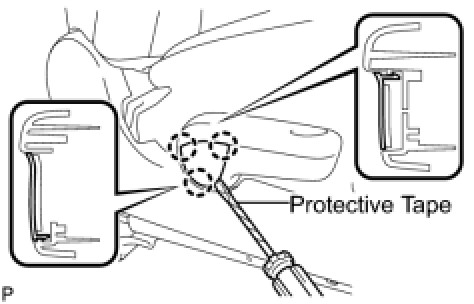

10. REMOVE VERTICAL ADJUSTER RH COVER

(a) Using a screwdriver, disengage the 3 claws and remove the vertical adjuster RH cover.

HINT
Tape the screwdriver tip before use.

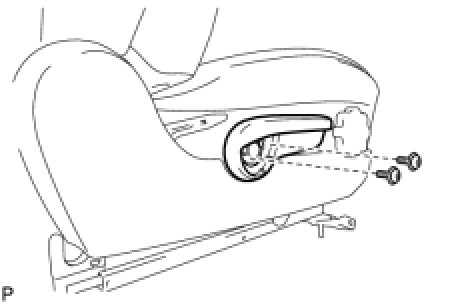

11. REMOVE VERTICAL ADJUSTING HANDLE RH

(a) Remove the 2 screws and the vertical adjusting handle RH.

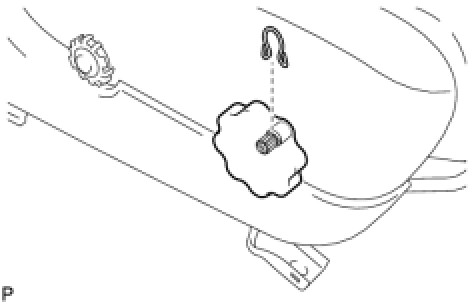

12. REMOVE VERTICAL SEAT ADJUSTER KNOB RH

(a) Remove the snap ring and the vertical seat adjuster knob RH.

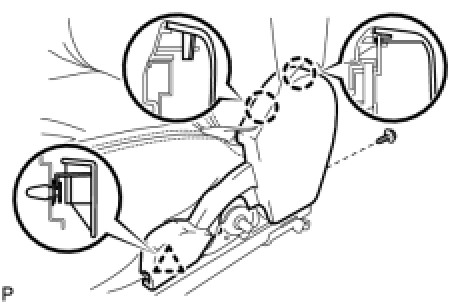

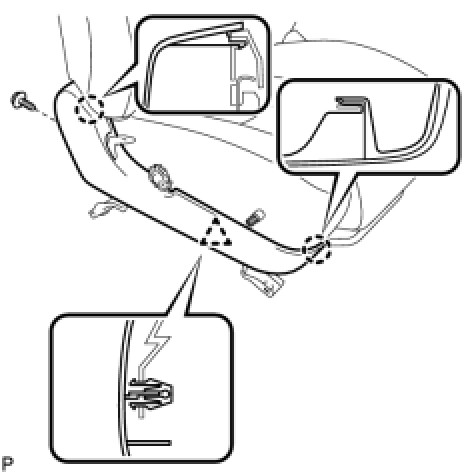

13. REMOVE FRONT SEAT CUSHION SHIELD RH

(a) Remove the screw.

(b) Disengage the 2 claws and clip to remove the front seat cushion shield RH.

14. REMOVE FRONT SEAT INNER CUSHION SHIELD RH

(a) Remove the screw.

(b) Disengage the 2 claws and clip to remove the front seat inner cushion shield RH.

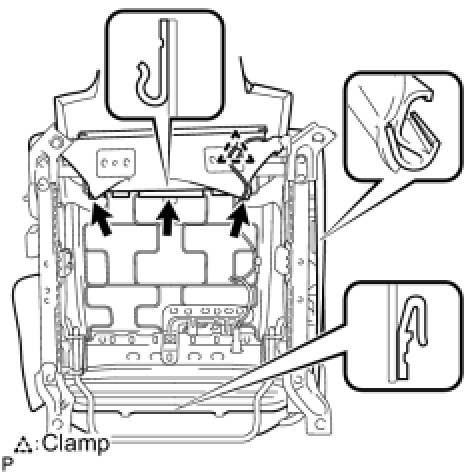

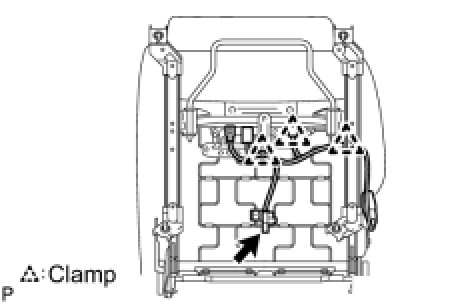

15. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

(a) Disengage the clamp and separate the occupant detection sensor connector.

(b) Disengage the 2 hooks.

(d) Remove the front seat cushion cover with pad.

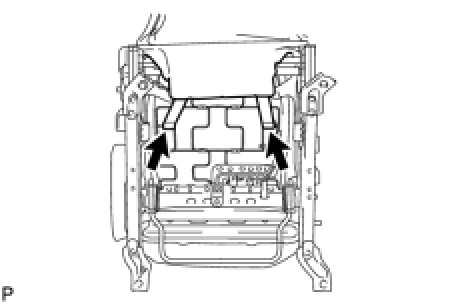

16. REMOVE SEPARATE TYPE FRONT SEAT CUSHION PAD

(a) Remove the hog rings.

(b) Remove the separate type front seat cushion pad.
