Seat Belt Warning System (w/o Occupant Classification System)

SEAT BELT: SEAT BELT WARNING SYSTEM (w/o Occupant Classification System): TERMINALS OF ECU

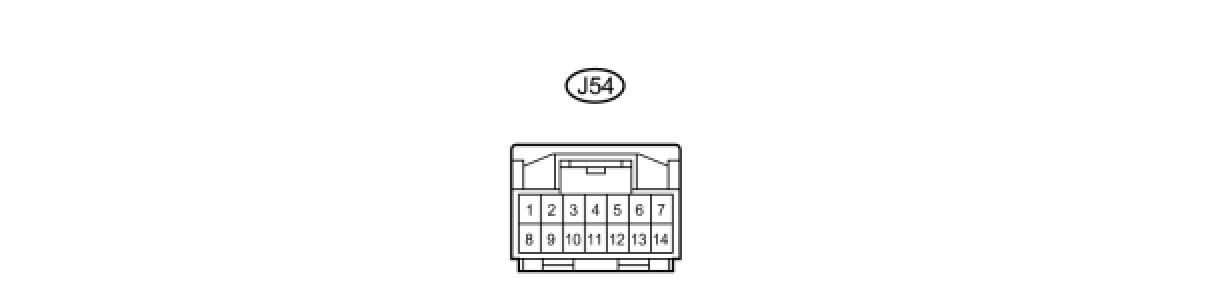

1. COMBINATION METER ASSEMBLY





Voltage:

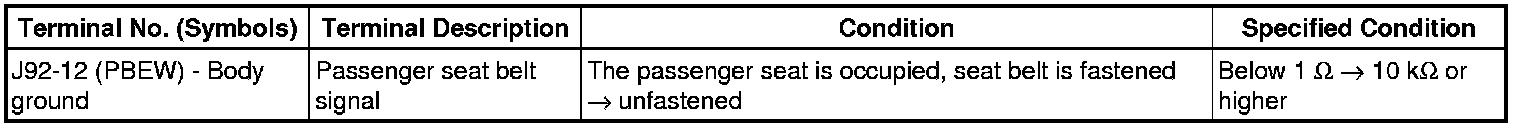

Resistance:





2. CLOCK ASSEMBLY (w/ MULTI-DISPLAY)





Voltage:





Resistance:

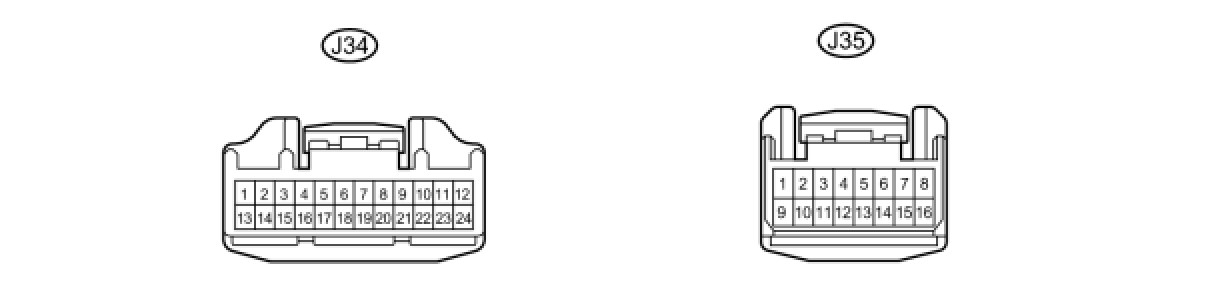

3. INTEGRATION CONTROL & PANEL (w/o MULTI-DISPLAY)





Voltage:

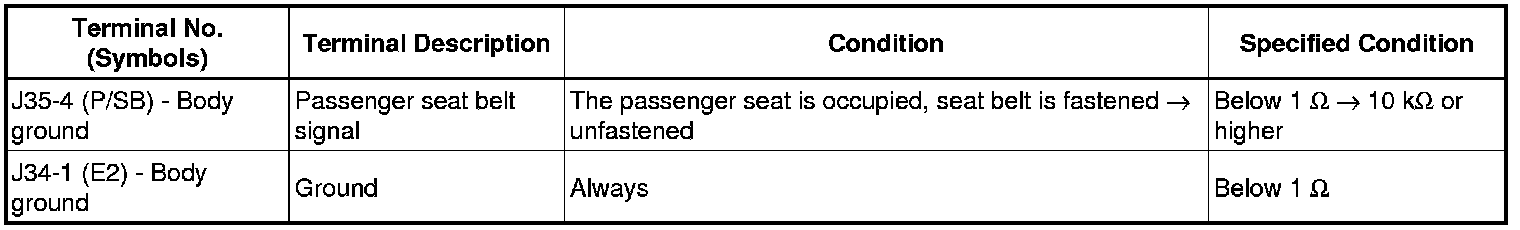

Resistance:
