Seat Belt Warning System (w/ Occupant Classification System)

SEAT BELT: SEAT BELT WARNING SYSTEM (w/ Occupant Classification System): TERMINALS OF ECU

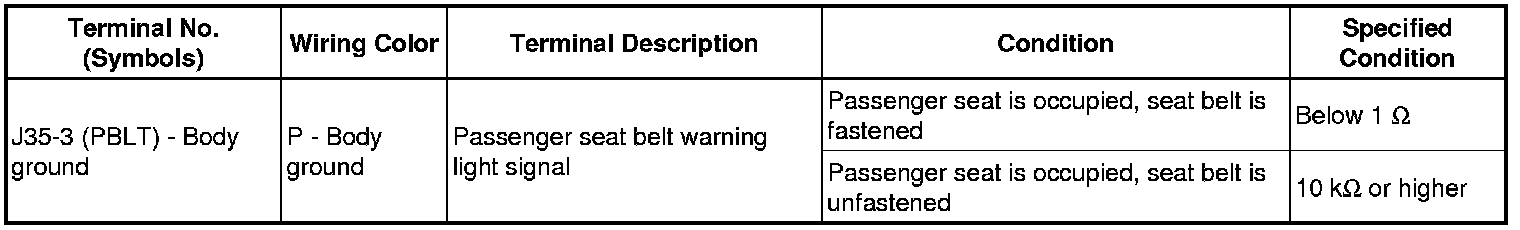

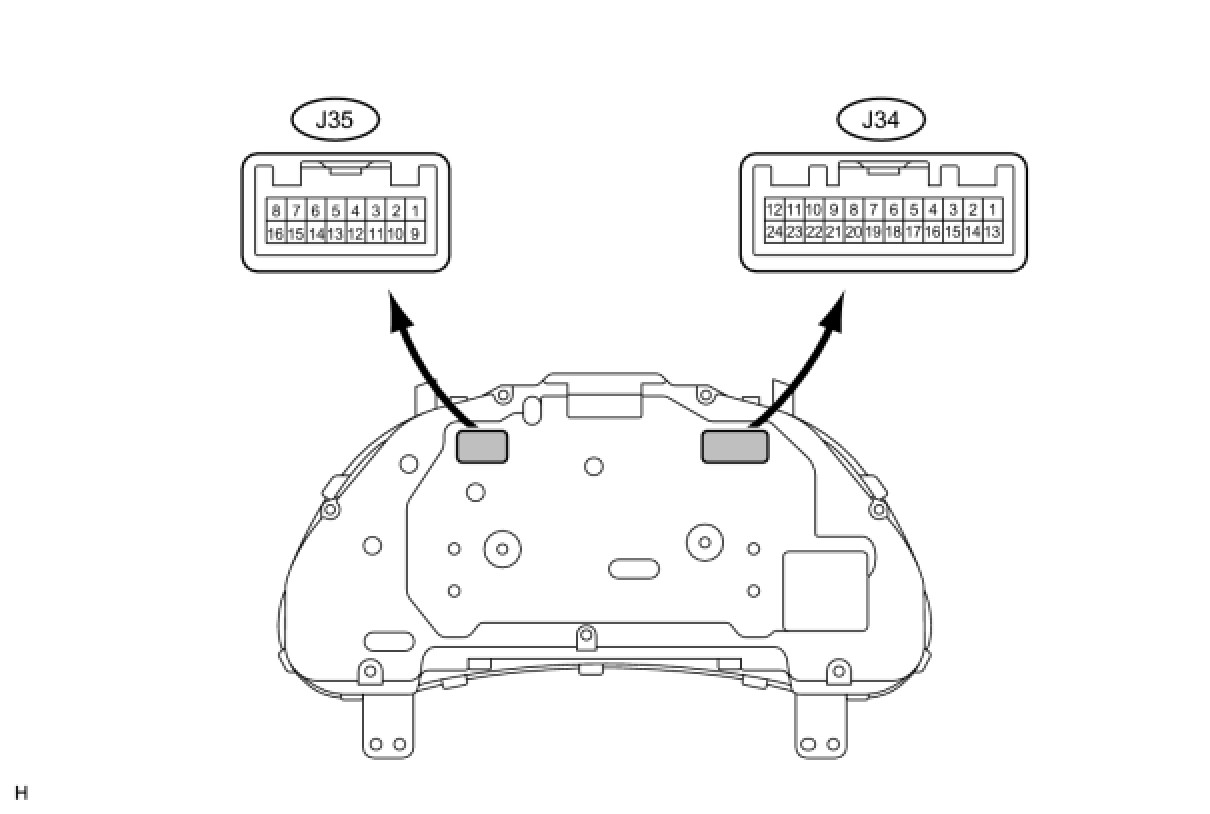

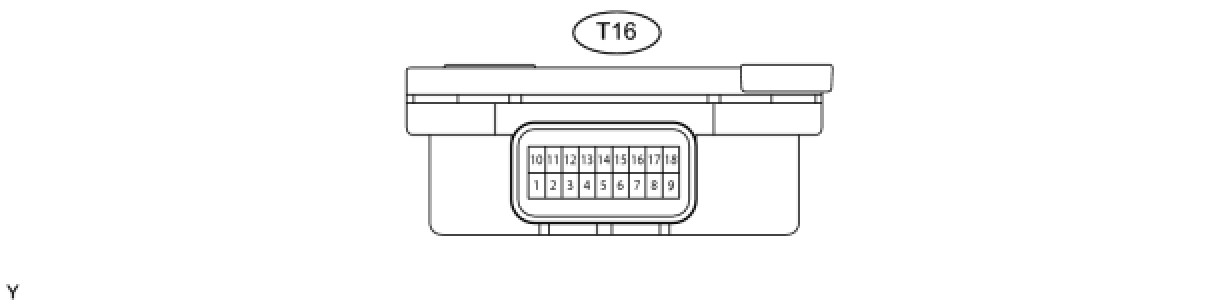

1. CHECK COMBINATION METER





(a) Measure the resistance according to the value(s) in the table below.





* If the result is not as specified, the meter may have a malfunction.

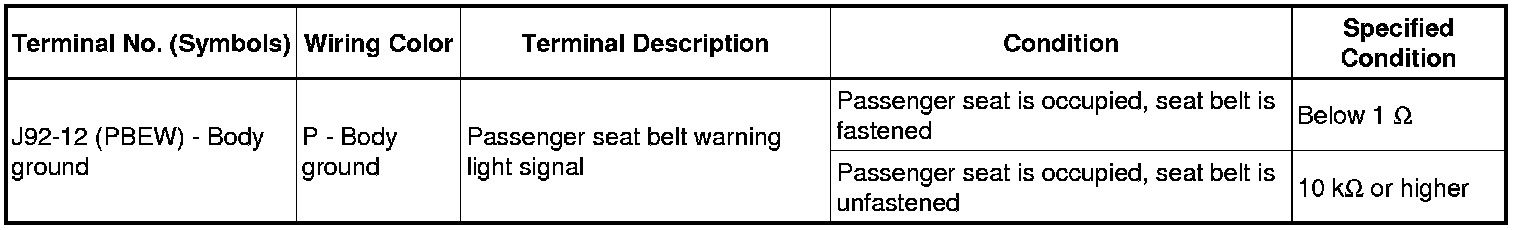

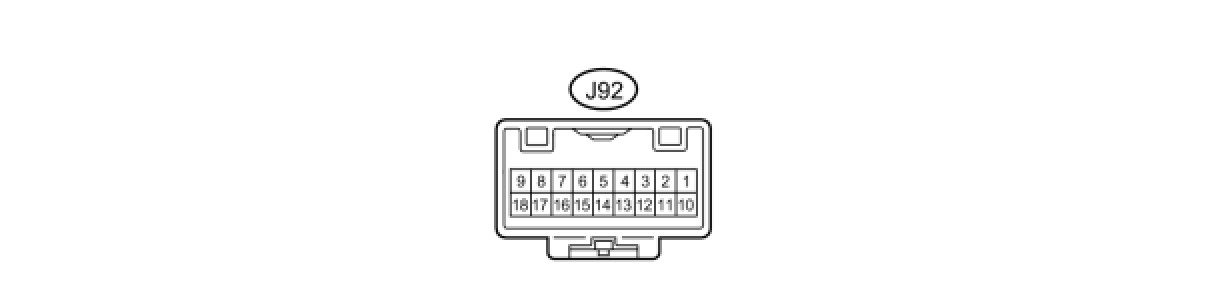

2. CHECK INTEGRATION CONTROL AND PANEL (w/o MULTI-DISPLAY)





(a) Measure the resistance according to the value(s) in the table below.





* If the result is not as specified, the panel may have a malfunction.

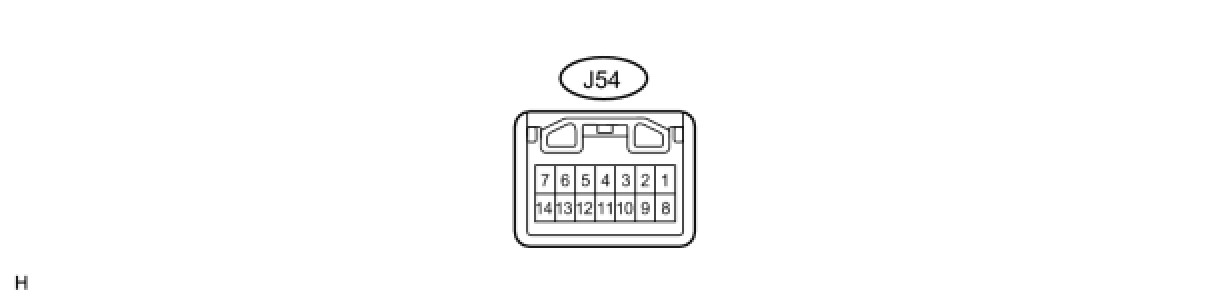

3. CHECK CLOCK (w/ MULTI-DISPLAY)





(a) Measure the resistance according to the value(s) in the table below.





* If the result is not as specified, the clock may have a malfunction.

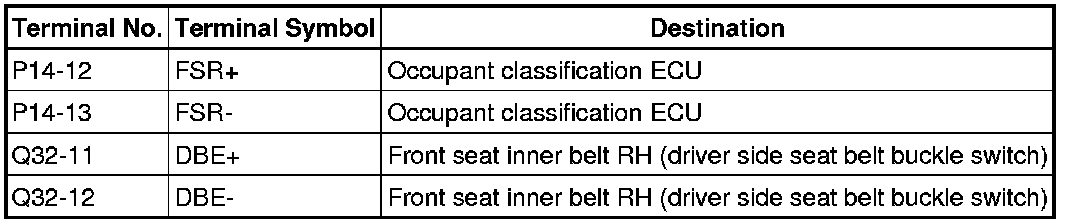

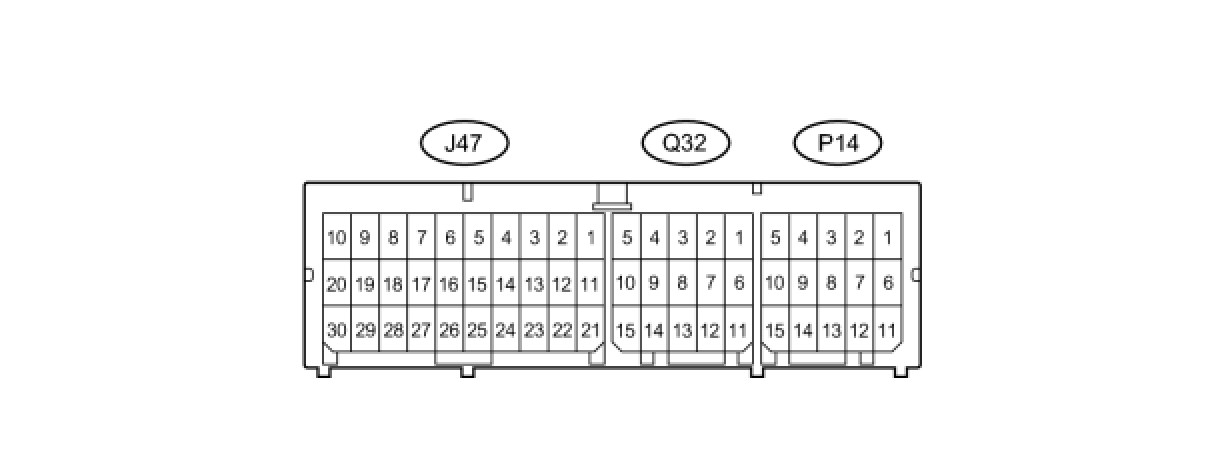

4. CENTER AIRBAG SENSOR

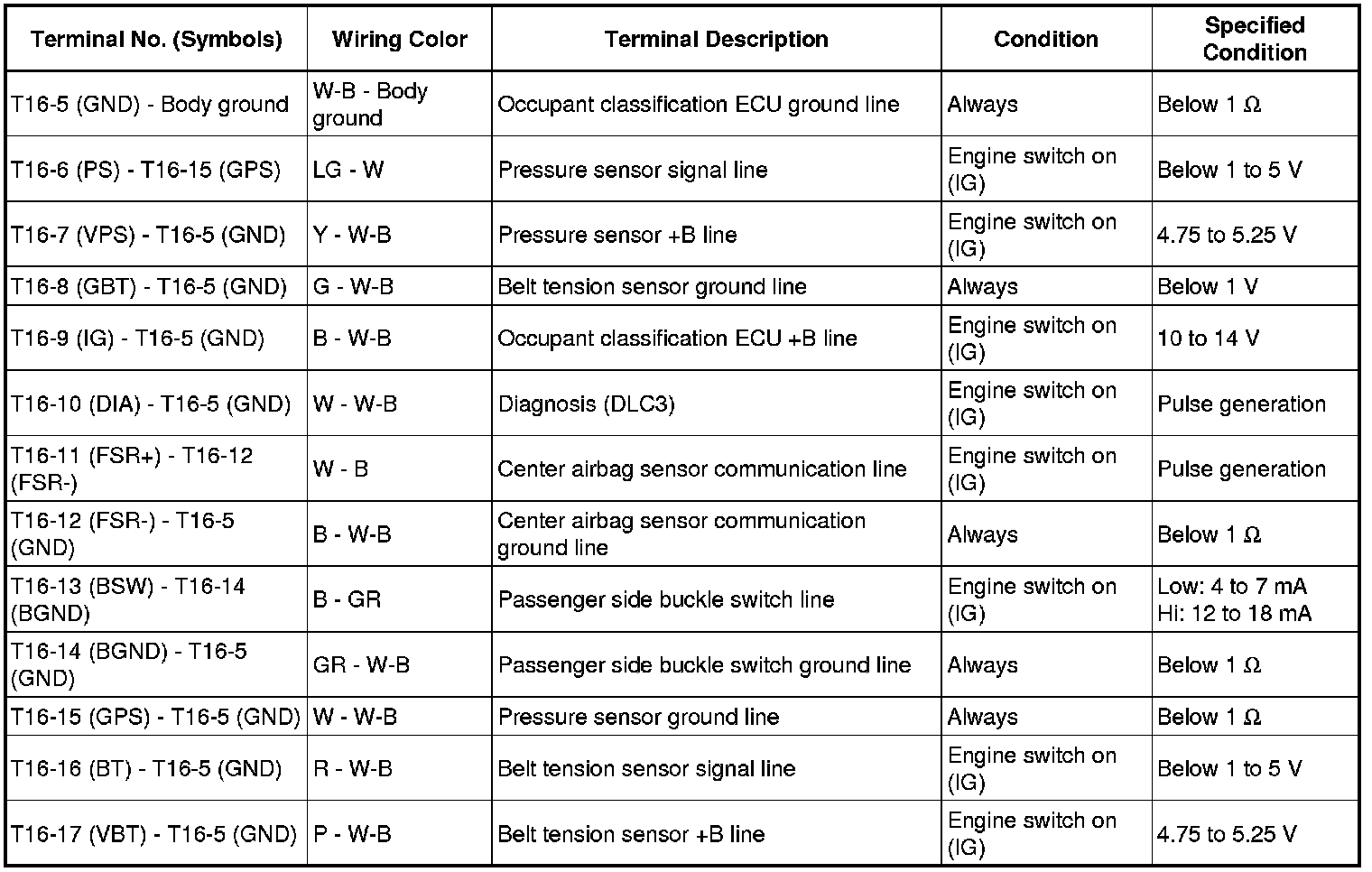

5. CHECK OCCUPANT CLASSIFICATION ECU

(a) Measure the resistance and voltage according to the value(s) in the table below.









* If the result is not as specified, the ECU may have a malfunction.
