How To Proceed With Troubleshooting

SEAT BELT: SEAT BELT WARNING SYSTEM (w/ Occupant Classification System): HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use these procedures to troubleshoot the seat belt warning system.
* *: Use Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

Standard voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding.

NEXT -- Continue to next step.

3. CHECK COMMUNICATION FUNCTION OF MULTIPLEX COMMUNICATION SYSTEM (BEAN)*

(a) Use Techstream to check if the Multiplex Communication System (MPX) is functioning normally.

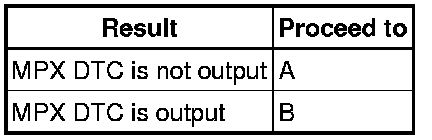

Result:





B -- GO TO MULTIPLEX COMMUNICATION SYSTEM
A -- Continue to next step.

4. CHECK COMMUNICATION FUNCTION OF CAN COMMUNICATION SYSTEM (CAN)*

(a) Use Techstream to check if the CAN Communication System (CAN) is functioning normally.

Result:





B -- GO TO CAN COMMUNICATION SYSTEM
A -- Continue to next step.

5. PROBLEM SYMPTOMS TABLE

HINT
Problem Symptoms Table

NEXT -- Continue to next step.

6. OVERALL ANALYSIS AND TROUBLESHOOTING*

(a) DATA LIST / ACTIVE TEST Seat Belt Warning System (w/ Occupant Classification System)

(b) Terminals of ECU Seat Belt Warning System (w/ Occupant Classification System)

(c) On-vehicle Inspection Seat Belt Warning System (w/ Occupant Classification System)

NEXT -- Continue to next step.

7. REPAIR OR REPLACE

NEXT -- Continue to next step.

8. CONFIRMATION TEST

NEXT -- END
