Front Seat Inner Belt Assembly

SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: INSPECTION

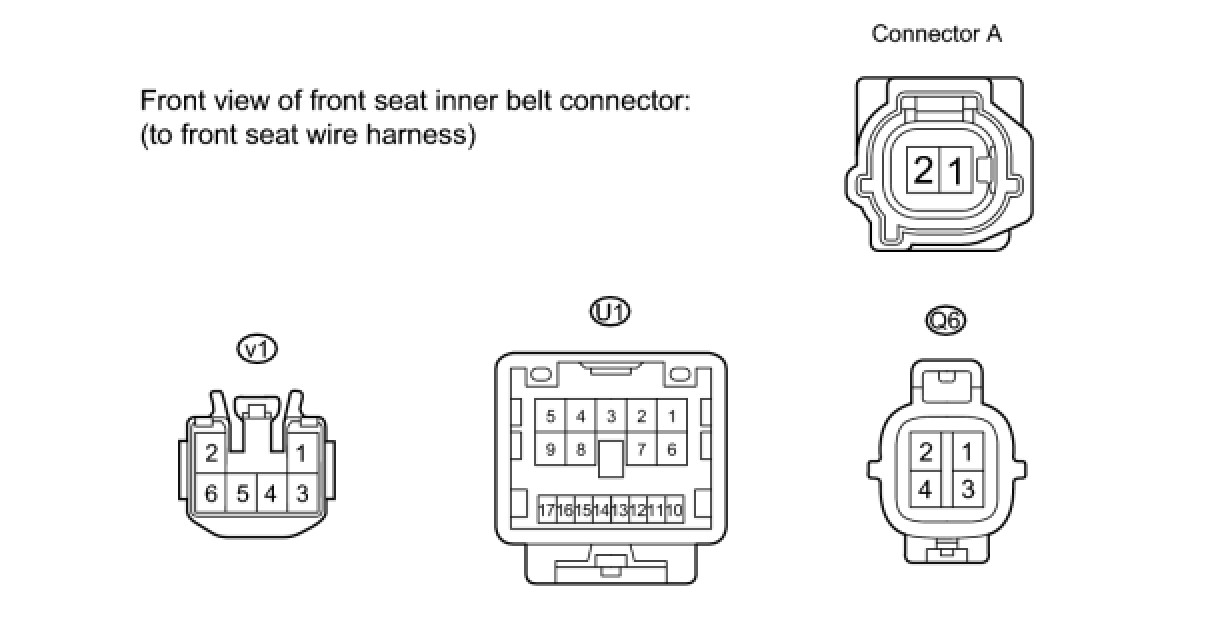

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH (for Power Seat)





(a) w/ Occupant Classification System:

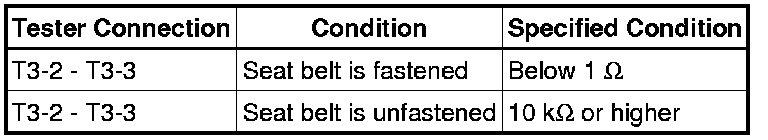

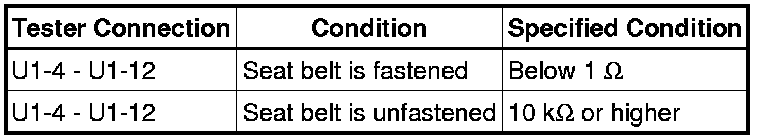

(1) Measure the resistance between the terminals of the switch when the switch is operated.

Standard resistance:

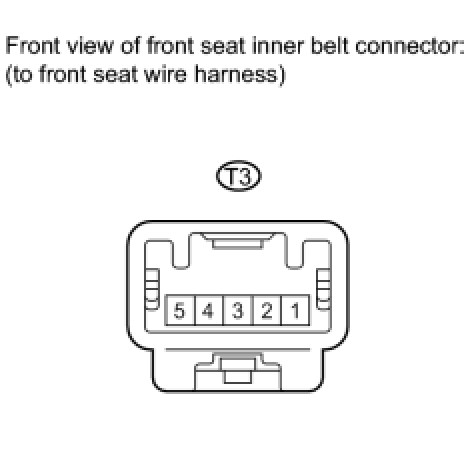

(b) w/o Occupant Classification System:

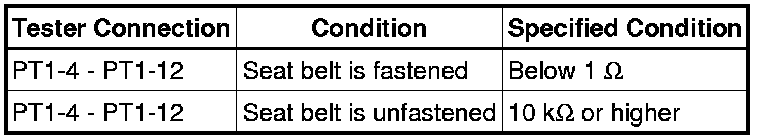

(1) Measure the resistance between the terminals of the switch when the switch is operated.

Standard resistance:

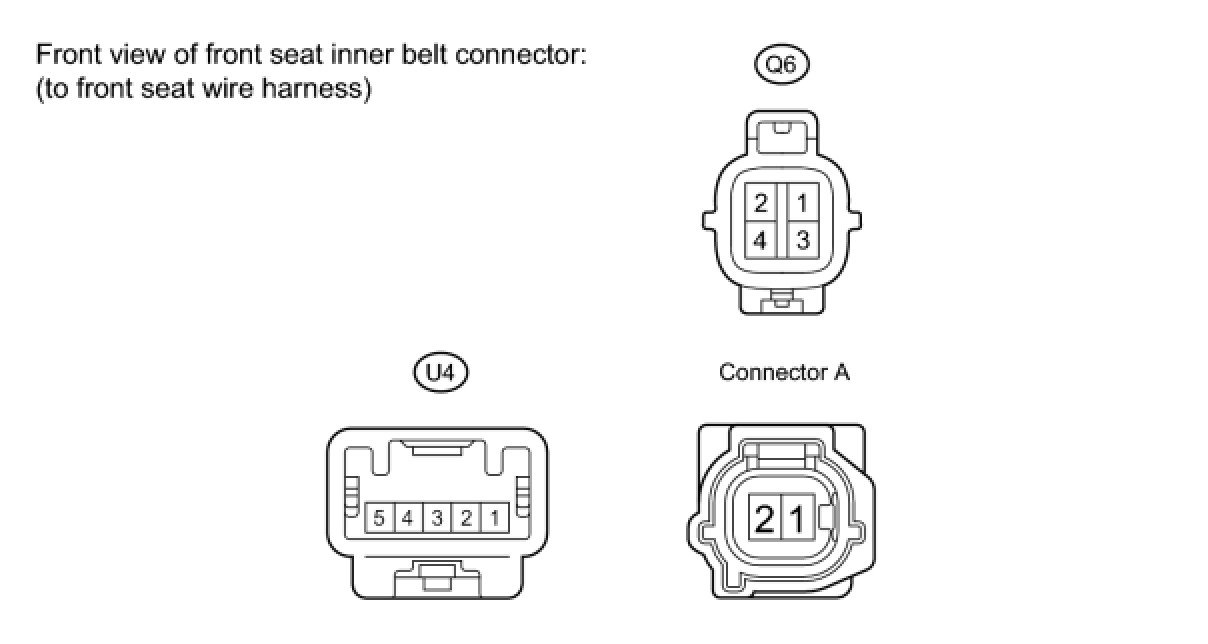

2. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH (for Manual Seat)

(a) w/ Seat Heater System:

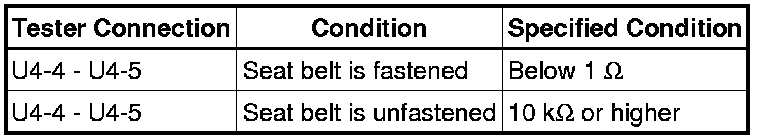

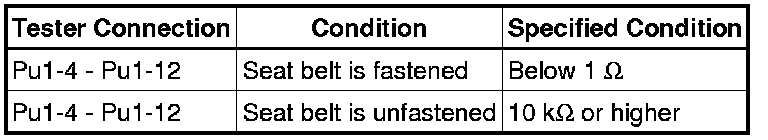

(1) Measure the resistance between the terminals of the switch when the switch is operated.





Standard resistance:

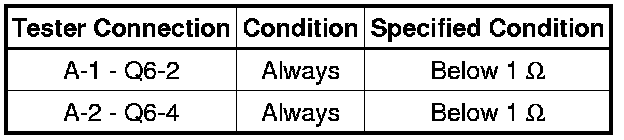

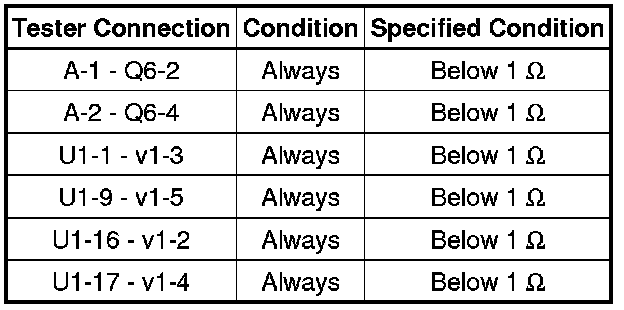

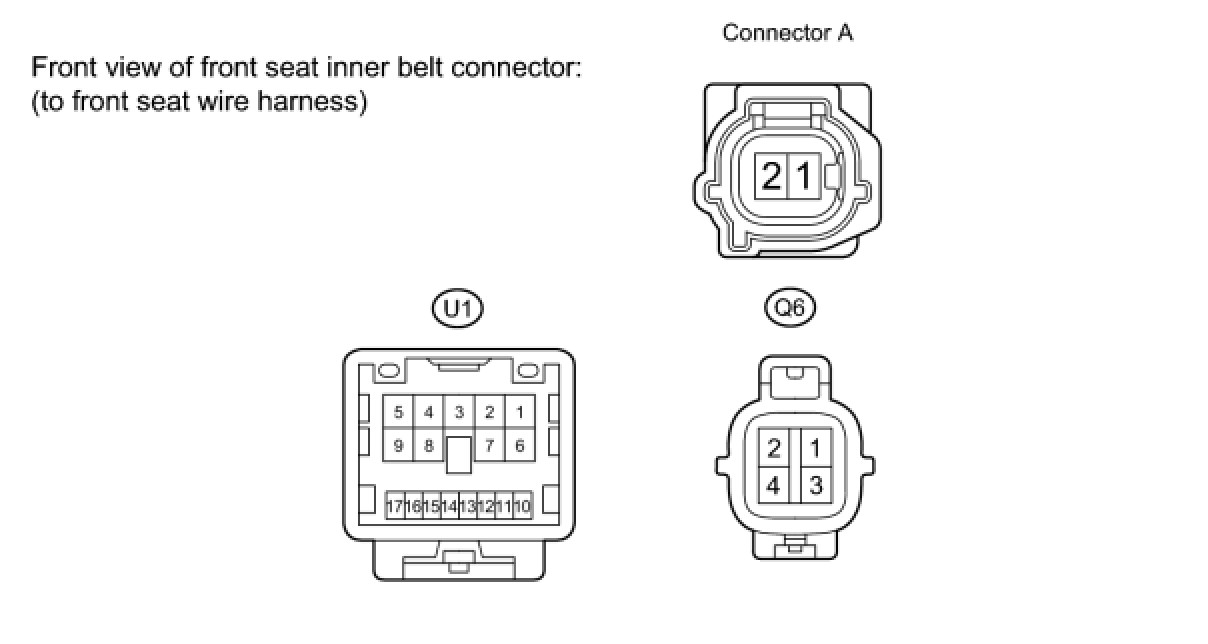

(2) Measure the resistance between the terminals of the front seat inner belt assembly.

Standard resistance:





(b) w/o Seat Heater System:

(1) Measure the resistance between the terminals of the switch when the switch is operated.





Standard resistance:





(2) Measure the resistance between the terminals of the front seat inner belt assembly.

Standard resistance:

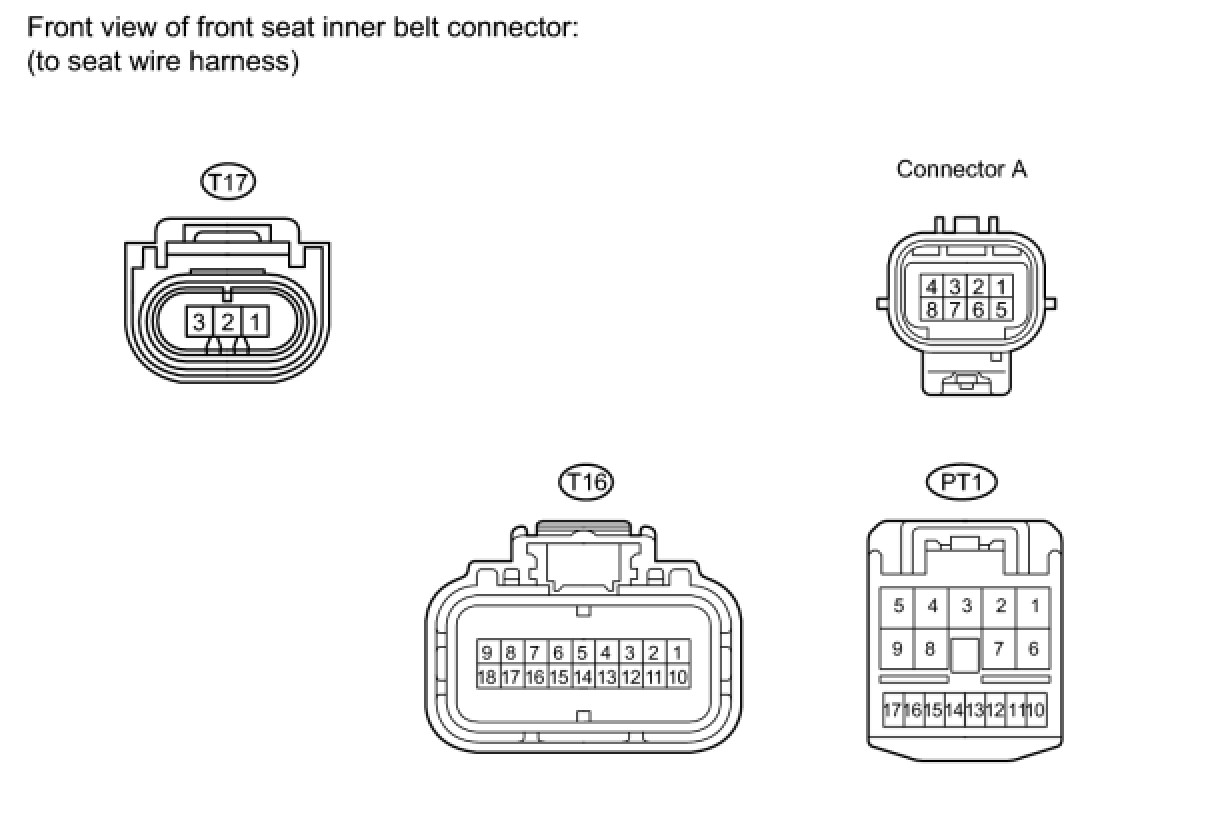

3. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH (for Power Seat)

(a) Measure the resistance between the terminals of the switch when the switch is operated.





Standard resistance:

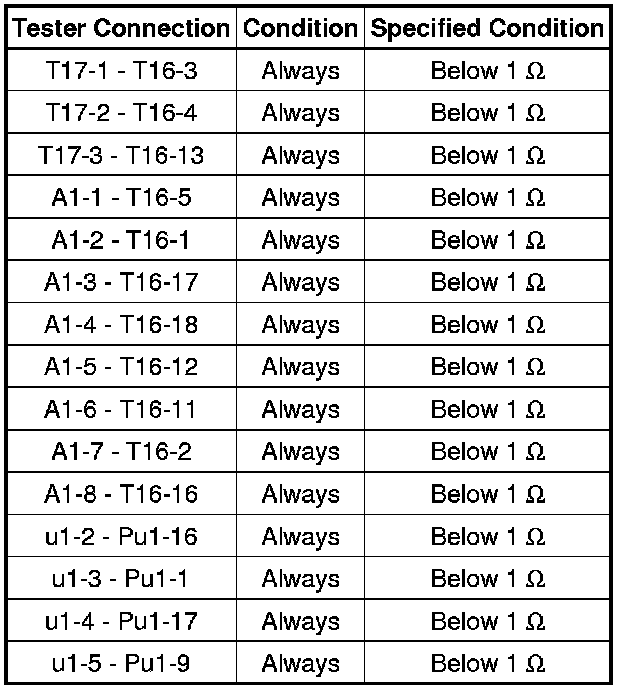

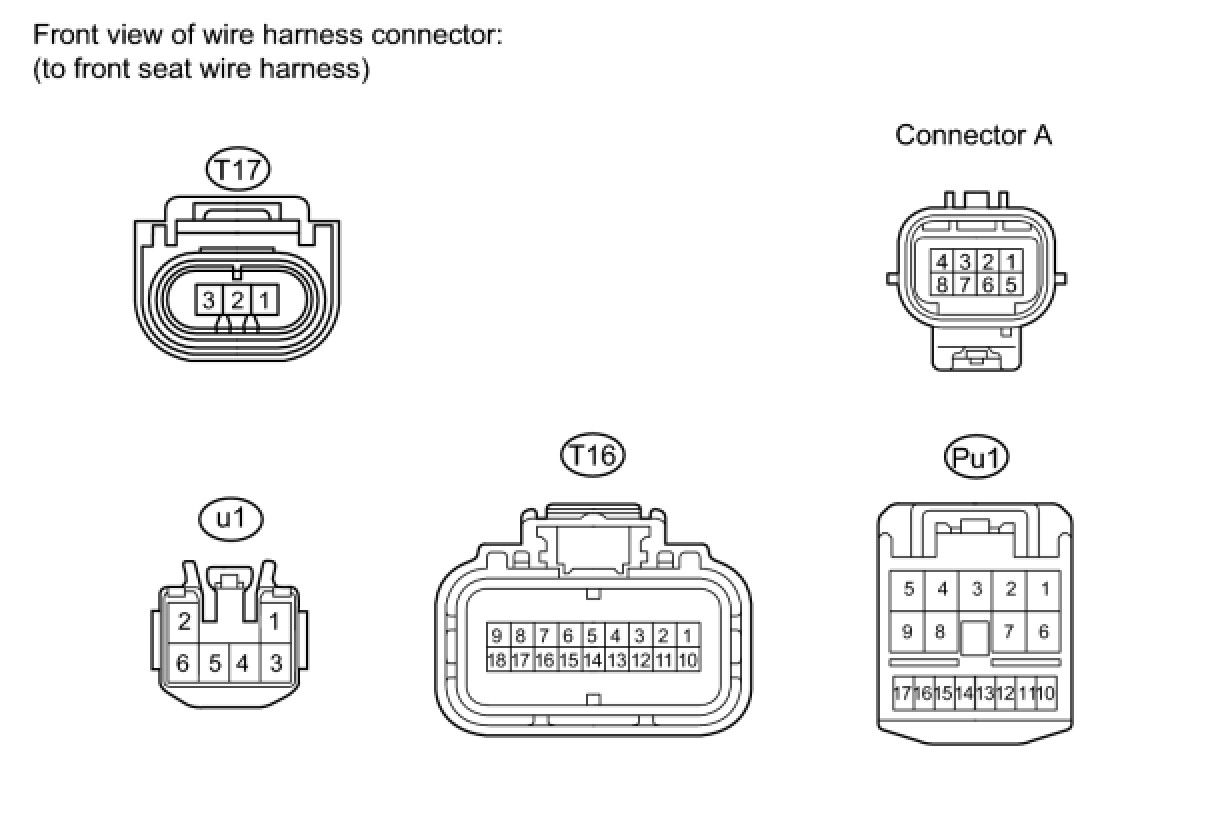

(b) Measure the resistance between the terminals of the front seat inner belt assembly.

Standard resistance:





4. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH (for Manual Seat)

(a) w/ Seat Heater System:

(1) Measure the resistance between the terminals of the switch when the switch is operated.





Standard resistance:





(2) Measure the resistance between the terminals of the front seat inner belt assembly.

Standard resistance:





(b) w/o Seat Heater System:

(1) Measure the resistance between the terminals of the switch when the switch is operated.





Standard resistance:





(2) Measure the resistance between the terminals of the front seat inner belt assembly.

Standard resistance:
