SEAT BELT: REAR SEAT INNER BELT ASSEMBLY: REMOVAL

1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY Removal

2. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH

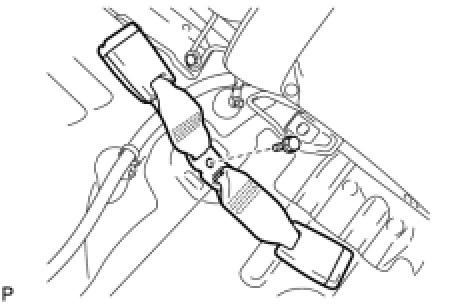

(a) Remove the bolt and the rear seat inner with center belt assembly LH.

3. REMOVE REAR SEAT HEADREST ASSEMBLY

4. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY

5. REMOVE BENCH TYPE REAR SEATBACK ASSEMBLY Removal

6. REMOVE REAR DOOR SCUFF PLATE LH Removal

7. REMOVE REAR DOOR SCUFF PLATE RH

HINT
Use the same procedures for the RH side and LH side.

8. REMOVE REAR SEAT SIDE GARNISH LH Removal

9. REMOVE REAR SEAT SIDE GARNISH RH

HINT
Use the same procedures for the RH side and LH side.

10. REMOVE ROOF SIDE INNER GARNISH LH Removal

11. REMOVE ROOF SIDE INNER GARNISH RH

HINT
Use the same procedures for the RH side and LH side.

12. REMOVE CENTER STOP LIGHT SET (w/ Rear Spoiler) Removal

13. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade)

(a) Remove the bolt and disconnect the floor end of the rear seat 3 point type belt assembly LH.

HINT
Use the same procedures for the RH side and the LH side.

(b) Remove the bolt and disconnect the floor end of the rear seat inner with center belt assembly RH.

HINT
Use the same procedures for the RH side and LH side.

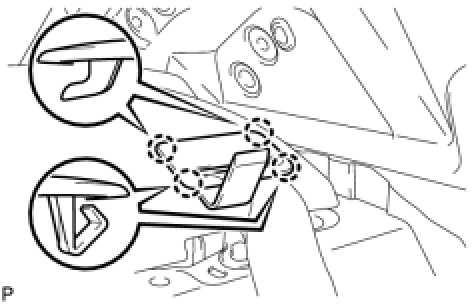

(d) Using a moulding remover, disengage the 4 claws and remove the rear seat shoulder belt cover center.

(e) w/o Rear Spoiler:

(1) Disengage the 3 clips and raise the front portion of the package tray trim panel assembly.

(2) Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.

(3) Disconnect the connector from the center stop light assembly.

(4) Disengage the 5 claws and remove the package tray trim panel assembly and the center stop light assembly as a unit.

(f) w/ Rear Spoiler:

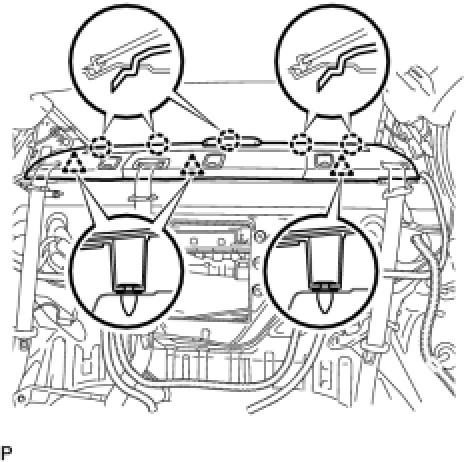

(1) Disengage the 3 clips and raise the front portion of the package tray trim panel assembly.

(2) Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.

(3) Disengage the 5 claws and remove the package tray trim panel assembly.

14. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)

(a) Remove the bolt and disconnect the floor end of the rear seat 3 point type belt assembly LH.

HINT
Use the same procedures for the RH side and the LH side.

(b) Remove the bolt and disconnect the floor end of the rear seat inner with center belt assembly RH.

HINT
Use the same procedures for the RH side and LH side.

(d) Using a moulding remover, disengage the 4 claws and remove the rear seat shoulder belt cover center.

(e) Disengage the 3 clips.

(f) Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.

(g) Remove the package tray trim panel assembly.

15. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH

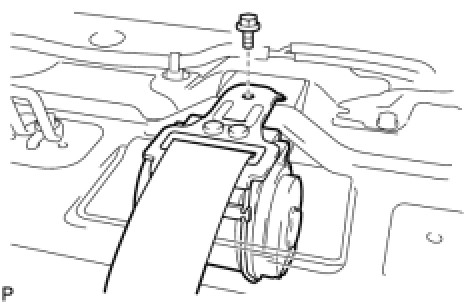

(a) Remove the bolt and the rear seat inner with center belt assembly RH.
