Removal

SEAT BELT: CHILD RESTRAINT SEAT TETHER ANCHOR: REMOVAL

1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY Removal

2. REMOVE REAR SEAT HEADREST ASSEMBLY

3. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY

4. REMOVE BENCH TYPE REAR SEATBACK ASSEMBLY Removal

5. REMOVE REAR DOOR SCUFF PLATE LH Removal

6. REMOVE REAR DOOR SCUFF PLATE RH Removal

7. REMOVE REAR SEAT SIDE GARNISH LH Removal

8. REMOVE REAR SEAT SIDE GARNISH RH Removal

9. REMOVE ROOF SIDE INNER GARNISH LH Removal

10. REMOVE ROOF SIDE INNER GARNISH RH Removal

11. REMOVE CENTER STOP LIGHT SET (w/ Rear Spoiler) Removal

12. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade) Removal

13. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade) Removal

14. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET

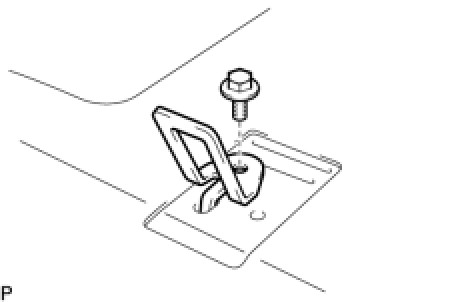

(a) Remove the 3 bolts and the 3 child restraint seat tether anchor brackets.
