Removal
SUPPLEMENTAL RESTRAINT SYSTEM: SEAT POSITION SENSOR: REMOVAL
1. PRECAUTION
CAUTION:
Be sure to read the "PRECAUTION" thoroughly before servicing Service Precautions.
2. REMOVE FRONT SEAT HEADREST ASSEMBLY
3. REMOVE FRONT OUTER SEAT TRACK COVER LH (for Power Seat)
for Standard type: Removal
for Sports type: Removal
4. REMOVE FRONT INNER SEAT TRACK COVER LH (for Power Seat)
for Standard type: Removal
for Sports type: Removal
5. REMOVE FRONT REAR OUTER SEAT TRACK COVER LH (for Power Seat)
for Standard type: Removal
for Sports type: Removal
6. REMOVE FRONT REAR INNER SEAT TRACK COVER LH (for Power Seat)
for Standard type: Removal
for Sports type: Removal
7. REMOVE FRONT SEAT ASSEMBLY LH (for Power Seat)
for Standard type: Removal
for Sports type: Removal
8. REMOVE FRONT INNER SEAT TRACK BRACKET COVER (for Manual Seat) Removal
9. REMOVE FRONT OUTER SEAT TRACK BRACKET COVER (for Manual Seat) Removal
10. REMOVE REAR OUTER SEAT TRACK BRACKET COVER (for Manual Seat) Removal
11. REMOVE REAR INNER SEAT TRACK BRACKET COVER (for Manual Seat) Removal
12. REMOVE FRONT SEAT ASSEMBLY (for Manual Seat) Removal
13. REMOVE VERTICAL SEAT ADJUSTER KNOB (for Manual Seat) Disassembly
14. REMOVE VERTICAL SEAT ADJUSTER KNOB CAP (for Manual Seat) Disassembly
15. REMOVE VERTICAL ADJUSTING HANDLE (for Manual Seat) Disassembly
16. REMOVE RECLINING ADJUSTER RELEASE HANDLE (for Manual Seat) Disassembly
17. REMOVE FRONT SEAT CUSHION SHIELD (for Manual Seat) Disassembly
18. REMOVE SEAT POSITION SENSOR (for Power Seat)

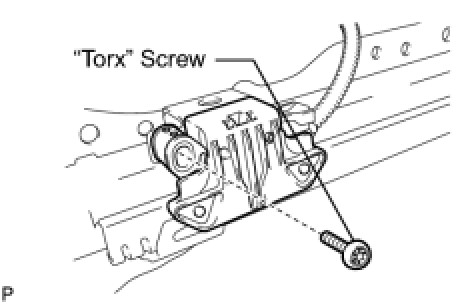

(a) Using a "torx" socket wrench (T30), remove the "torx" screw and seat position sensor with sensor protector.
(b) Disconnect the connector.

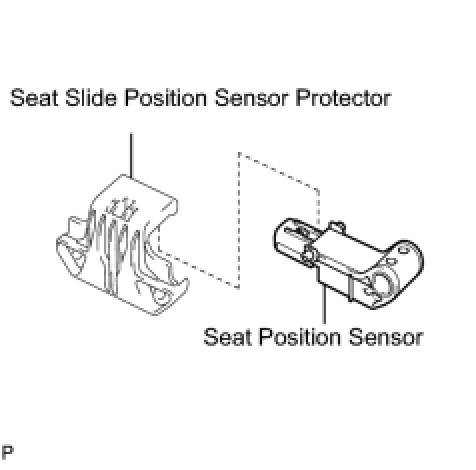

(c) Separate the seat slide position sensor protector from the seat position sensor.
19. REMOVE SEAT POSITION SENSOR (for Manual Seat)
(a) Using a "torx" socket wrench (T30), remove the "torx" screw and seat position sensor with sensor protector.
(b) Disconnect the connector.
(c) Separate the seat slide position sensor protector from the seat position sensor.
