Removal

SUPPLEMENTAL RESTRAINT SYSTEM: FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY: REMOVAL

1. PRECAUTION

CAUTION:
Be sure to read "PRECAUTION" thoroughly before servicing Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

3. REMOVE FRONT DOOR SCUFF PLATE (w/o Illumination) Removal

4. REMOVE FRONT DOOR SCUFF PLATE (w/ Illumination) Removal

5. REMOVE FRONT DOOR OPENING TRIM COVER Removal

6. REMOVE SIDE INSTRUMENT PANEL Removal

7. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

8. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY

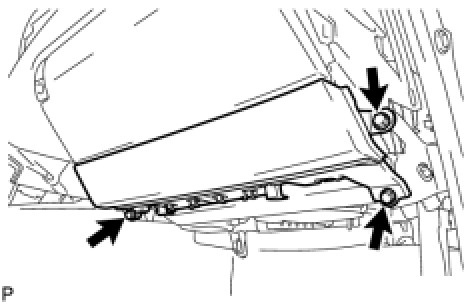

(a) Remove the 3 bolts and front passenger side knee airbag assembly.





(b) Disconnect the connector.

NOTICE:
When handling the airbag connector, take care not to damage the airbag wire harness.
