Fuel Pump (for High Pressure)
>>

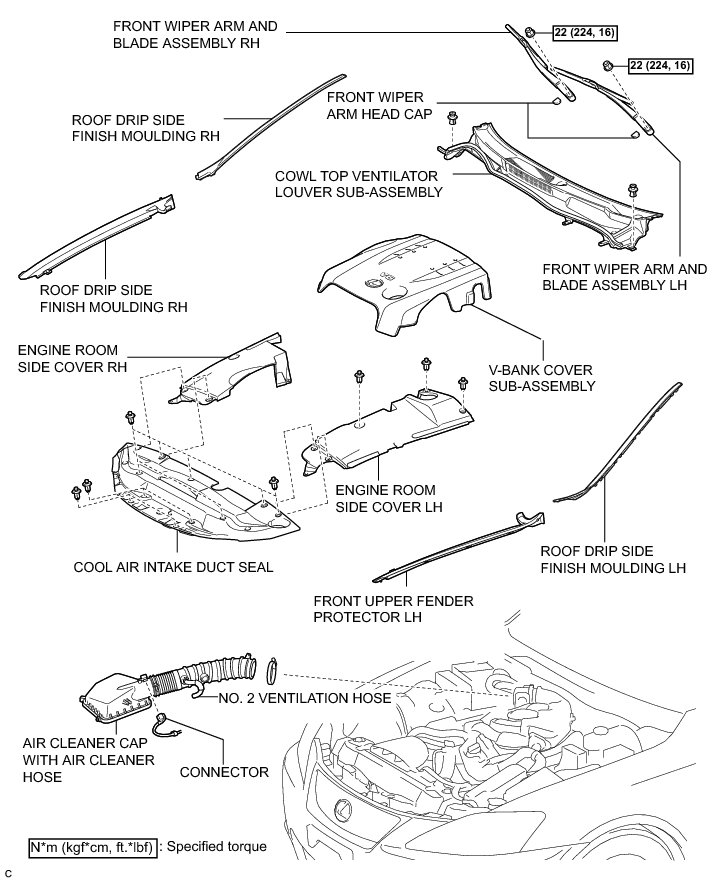

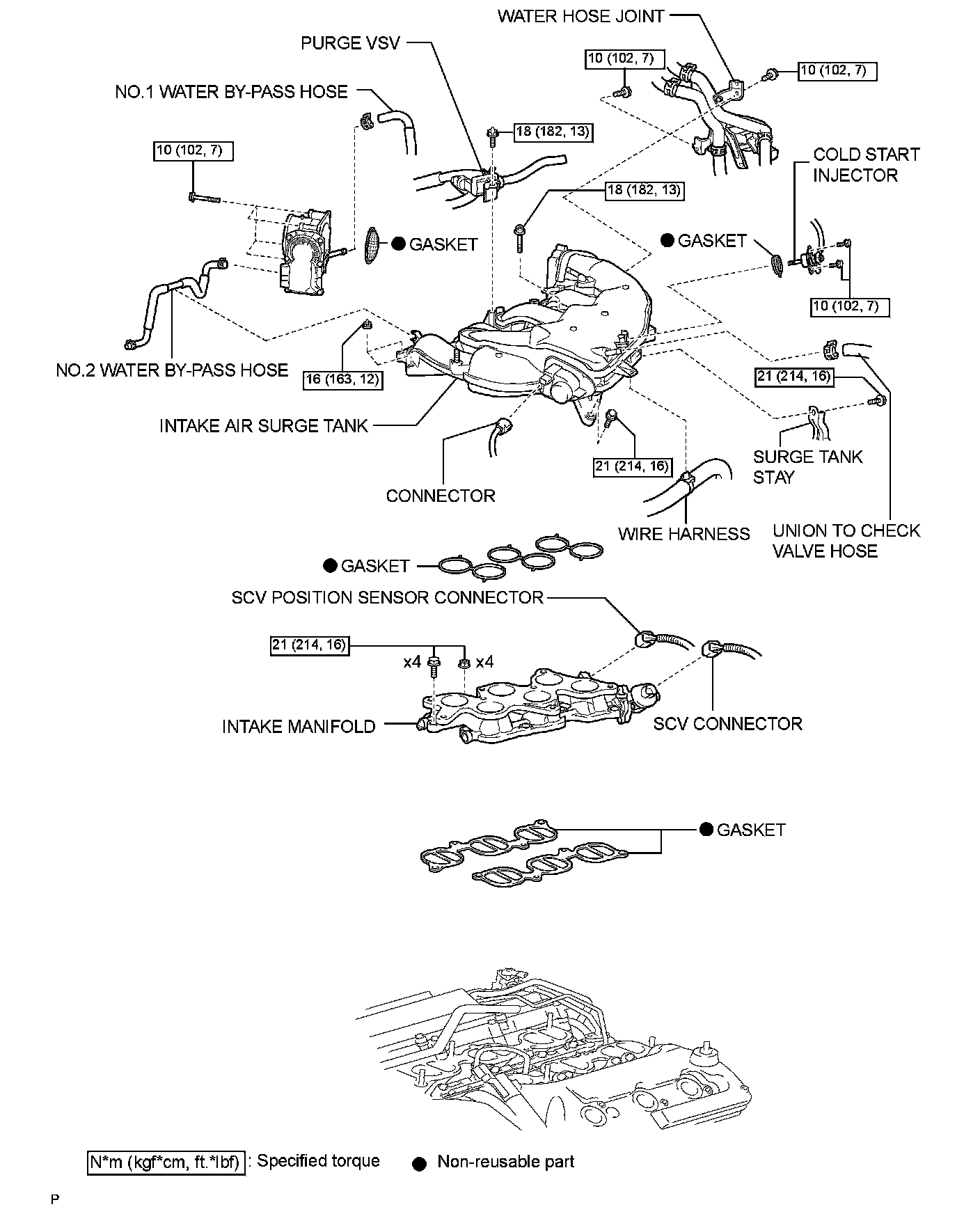

Components
Components

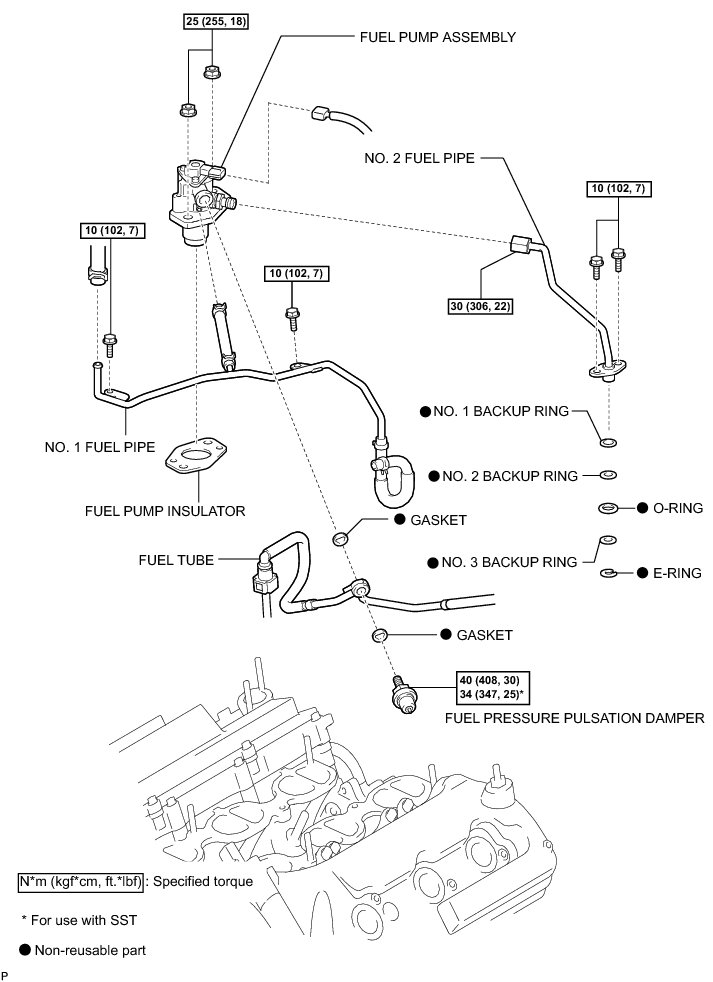

4GR-FSE FUEL:
FUEL PUMP
(for High Pressure): COMPONENTS
