Fuel Pump Ballast Resistor: Testing and Inspection

4GR-FSE FUEL: FUEL PUMP RESISTOR: INSPECTION

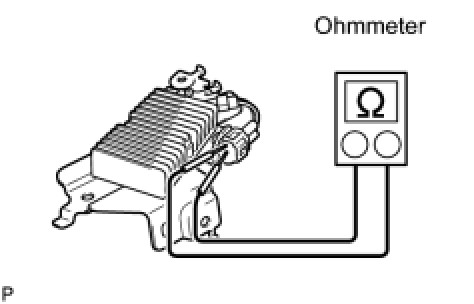

1. INSPECT FUEL PUMP RESISTOR





(a) Measure the resistance between the terminals.

Standard resistance:

0.30 to 0.34 Ohms at 20°C (68°F)

If the result is not as specified, replace the fuel pump resistor.
