Installation

4GR-FSE FUEL: FUEL PUMP RESISTOR: INSTALLATION

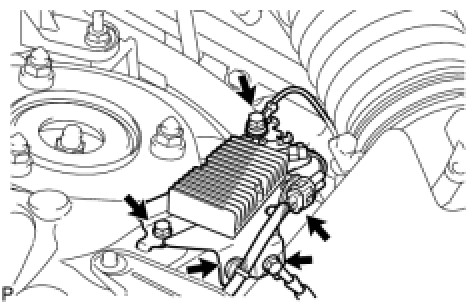

1. INSTALL FUEL PUMP RESISTOR

(a) Install the fuel pump resistor with the bolt.





Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

(b) Install the ground wires with the 2 bolts.

Torque : 8.0 Nm (80 kgf-cm, 69 in-lbf)

(c) Connect the connector with the clamp.

2. INSTALL ENGINE ROOM RH SIDE COVER Installation

3. INSTALL COOL AIR INTAKE DUCT SEAL Installation

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation
