Installation

4GR-FSE FUEL: FUEL PRESSURE PULSATION DAMPER: INSTALLATION

1. INSTALL FUEL PRESSURE PULSATION DAMPER

(a) Apply a light coat of engine oil to the threads and gasket seating surface of the fuel pressure pulsation damper.

(b) Install 2 new gaskets, the fuel tube and fuel pressure pulsation damper to the fuel pump.

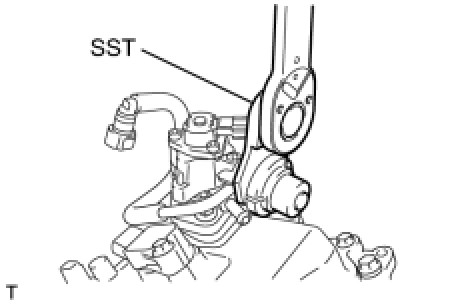

(c) Using SST, tighten the fuel pressure pulsation damper to the fuel pump.

SST : 09612-24014

09617-24011

without SST - Torque : 40 Nm (408 kgf-cm, 30 ft-lbf)

with SST - Torque : 34 Nm (347 kgf-cm, 25 ft-lbf)

HINT
* The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 300 mm (11.81 in.).
* The torque shown above should be used for tightening without using SST. When the SST is used for tightening, the torque should be calculated based on the length of the SST Service Precautions.

2. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation
