4GR-FSE INTAKE: INTAKE SYSTEM: SYSTEM DIAGRAM
1.

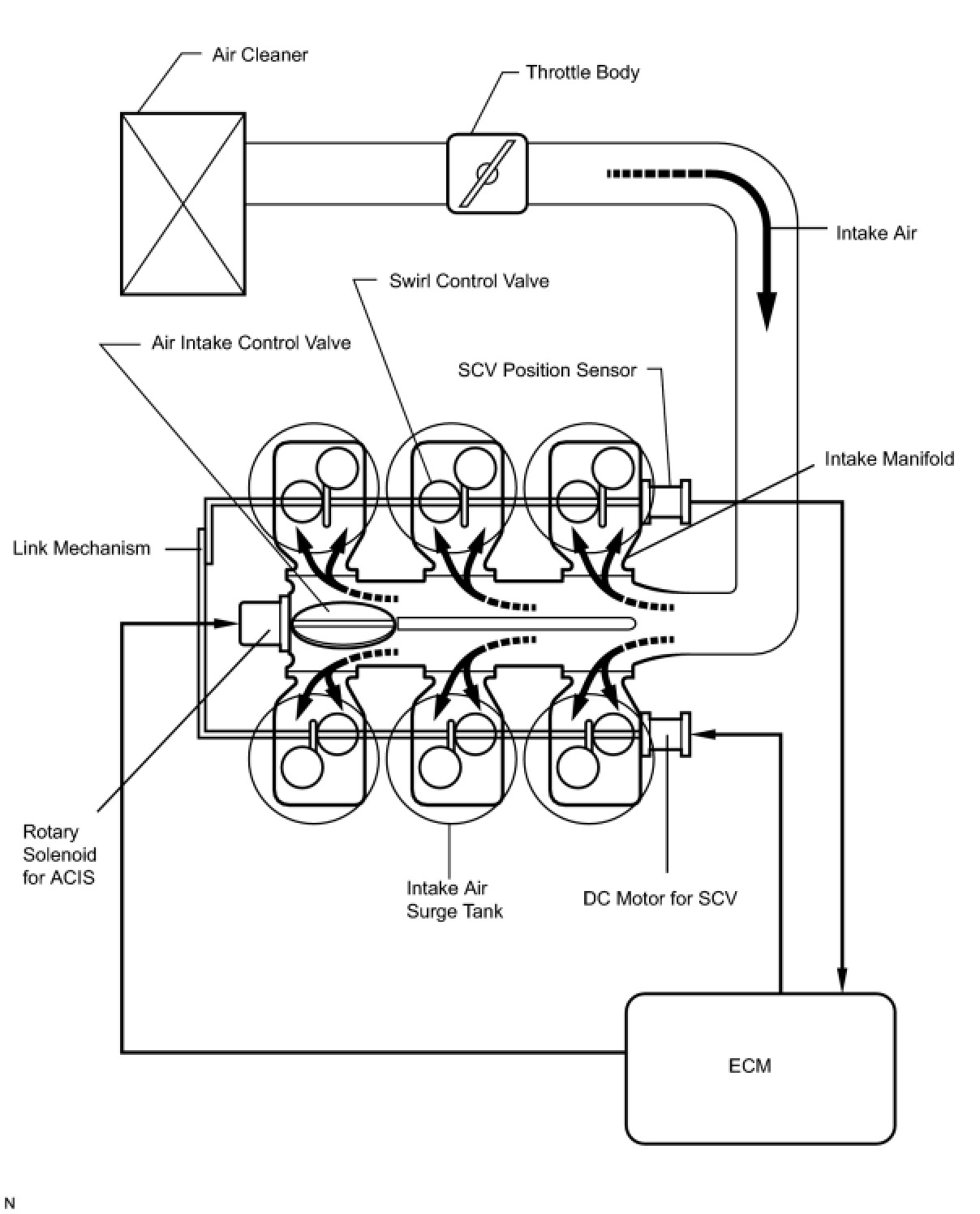

INTAKE CONTROL SYSTEM VALVE DIAGRAM
2.

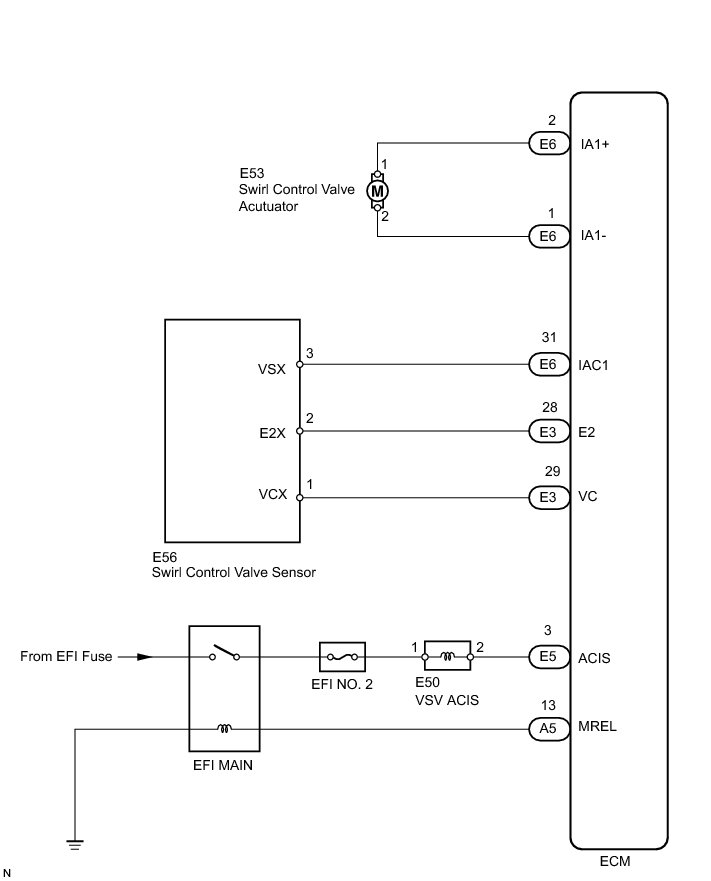

ELECTRICAL WIRING DIAGRAM
