Accelerator Pedal: Testing and Inspection

4GR-FSE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL: ON-VEHICLE INSPECTION

1. INSPECT ACCELERATOR PEDAL

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream main switch ON.

(d) Enter the following menus: Powertrain / Engine and ECT / Data List / Accelerator Position No. 1 and Accelerator Position No. 2.

(e) When depressing or releasing the accelerator pedal, check that the values of the Accelerator Position No. 1 and Accelerator Position No. 2 are within the specification.

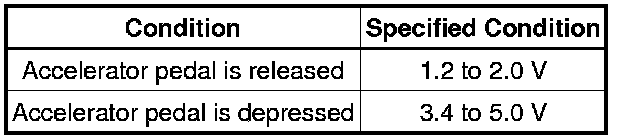

Accelerator Position No. 1 standard voltage:

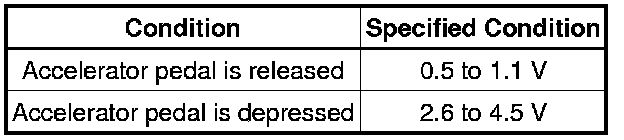

Accelerator Position No. 2 standard voltage:





If the result is not as specified, check the accelerator pedal, wire harness or ECM.
