Canister Purge Solenoid: Testing and Inspection

4GR-FSE EMISSION CONTROL: PURGE VALVE: INSPECTION

1. INSPECT PURGE VSV

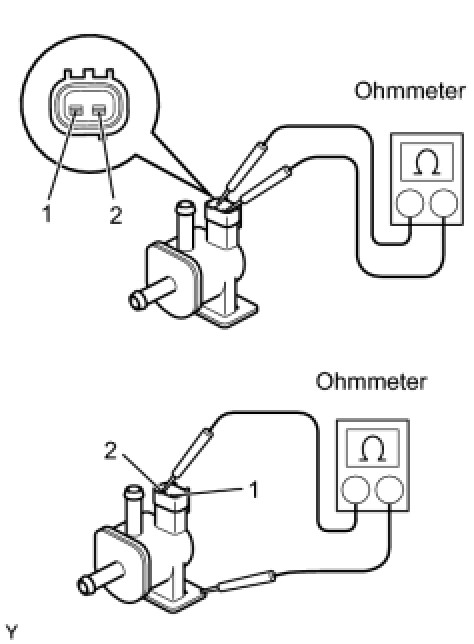

(a) Measure the resistance of the purge VSV.

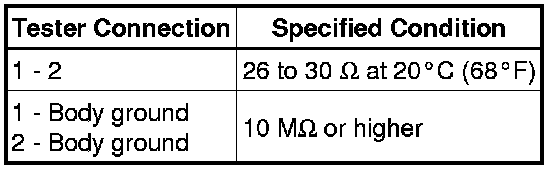

Standard resistance:





If the result is not as specified, replace the purge VSV.

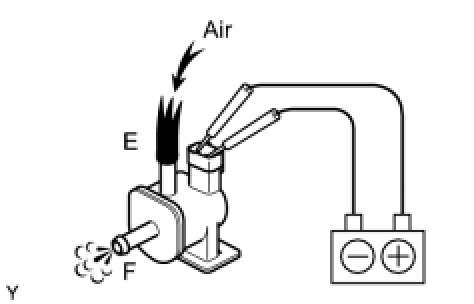

(b) Check operation of the purge VSV.

(1) Check that air does not flow from port E to port F.





(2) Apply battery voltage across terminals 1 and 2.





(3) Check that air flows from port E to port F.

If the result is not as specified, replace the purge VSV.
