4GR-FSE ENGINE CONTROL SYSTEM: CAMSHAFT OIL CONTROL VALVE: REMOVAL
1. REMOVE COOL AIR INTAKE DUCT SEAL Removal
2. REMOVE ENGINE ROOM SIDE COVER LH Removal
3. REMOVE ENGINE ROOM SIDE COVER RH Removal
4. REMOVE V-BANK COVER SUB-ASSEMBLY Removal
5. REMOVE FRONT FENDER PROTECTOR UPPER LH Removal
6. REMOVE FRONT FENDER PROTECTOR UPPER RH Removal
7. REMOVE ROOF DRIP SIDE FINISH MOULDING LH
8. REMOVE ROOF DRIP SIDE FINISH MOULDING RH Removal
9. REMOVE FRONT WIPER ARM HEAD CAP Removal
10. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH Removal
11. REMOVE WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH Removal
12. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Removal
13. DISCHARGE FUEL SYSTEM PRESSURE Removal
14. DRAIN ENGINE COOLANT Testing and Inspection
15. REMOVE NO. 2 VENTILATION HOSE Removal
16. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE Removal
17. SEPARATE THROTTLE BODY Removal
18. REMOVE COLD START INJECTOR Removal
19. REMOVE INTAKE AIR SURGE TANK Removal

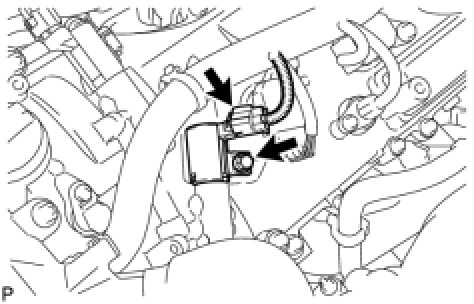

20. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 1 Exhaust Side)
(a) Disconnect the camshaft timing oil control valve connector.

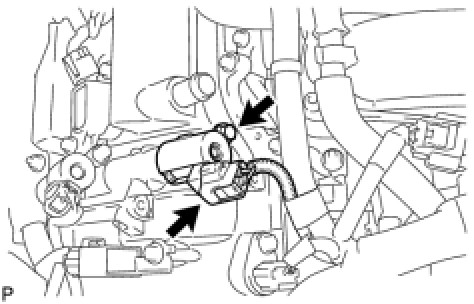

(b) Remove the bolt and camshaft timing oil control valve.
(c) Remove the O-ring from the camshaft timing oil control valve.
21. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 1 Intake Side)

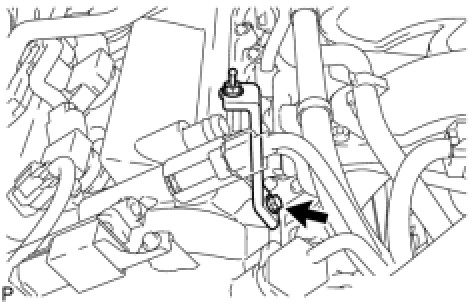

(a) Remove the bolt and V-bank cover bracket.

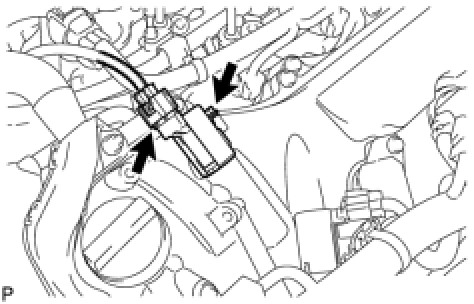

(b) Disconnect the camshaft timing oil control valve connector.
(c) Remove the bolt and camshaft timing oil control valve.
(d) Remove the O-ring from the camshaft timing oil control valve.
22. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 2 Exhaust Side)

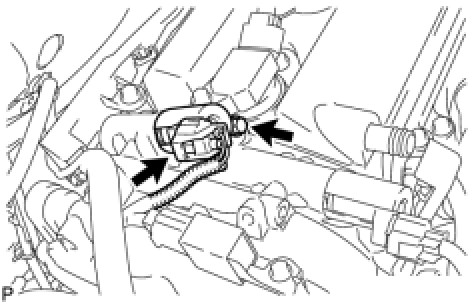

(a) Disconnect the camshaft timing oil control valve connector.
(b) Remove the bolt and camshaft timing oil control valve.
(c) Remove the O-ring from the camshaft timing oil control valve.
23. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 2 Intake Side)

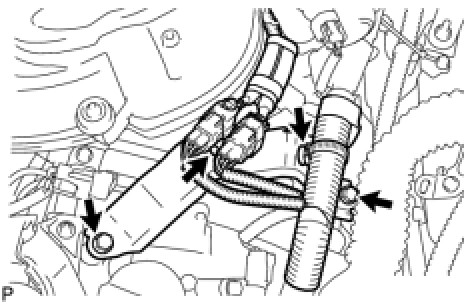

(a) Disconnect the 2 wire harness cramps from the bracket.
(b) Remove the 2 bolts and bracket.
(c) Disconnect the camshaft timing oil control valve connector.
(d) Remove the bolt and camshaft timing oil control valve.
(e) Remove the O-ring from the camshaft timing oil control valve.
