Installation

4GR-FSE ENGINE CONTROL SYSTEM: KNOCK SENSOR: INSTALLATION

1. INSTALL KNOCK SENSOR

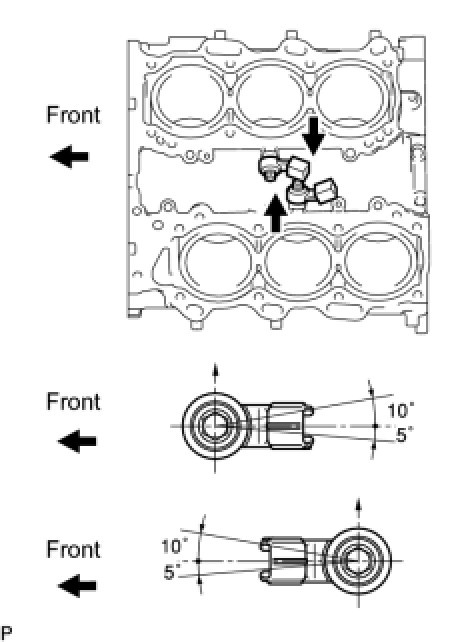

(a) Install the 2 knock sensors so that they are horizontal as shown in the illustration. Then install the 2 bolts.





Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

HINT
It is acceptable for the knock sensor to be tilted +10° to -5°.

(b) Connect the 2 knock sensor connectors.

2. INSTALL FUEL INJECTOR SEAL Installation

3. INSTALL INJECTOR Installation

4. INSTALL NO. 2 FUEL DELIVERY PIPE Installation

5. INSTALL NO. 1 FUEL DELIVERY PIPE Installation

6. INSTALL NO. 3 FUEL PIPE Installation

7. CONNECT NO. 2 FUEL PIPE Installation

8. INSTALL FUEL PUMP ASSEMBLY Installation

9. INSTALL NO. 2 FUEL PIPE Installation

10. INSTALL NO. 1 FUEL PIPE Installation

11. INSTALL FUEL PRESSURE PULSATION DAMPER Installation

12. INSTALL INTAKE MANIFOLD Installation

13. INSTALL INTAKE AIR SURGE TANK Installation

14. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE Installation

15. CONNECT NO. 2 VENTILATION HOSE Installation

16. ADD ENGINE COOLANT Testing and Inspection

17. INSPECT FOR COOLANT LEAK Testing and Inspection

18. INSPECT FOR FUEL LEAK Fuel System

19. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation

20. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY LH Installation

21. INSTALL WINDSHIELD WIPER ARM AND BLADE ASSEMBLY RH Installation

22. INSTALL FRONT WIPER ARM HEAD CAP Installation

23. INSTALL ROOF DRIP SIDE FINISH MOULDING RH

24. INSTALL ROOF DRIP SIDE FINISH MOULDING LH

25. INSTALL FRONT FENDER PROTECTOR UPPER RH Installation

26. INSTALL FRONT FENDER PROTECTOR UPPER LH Installation

27. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

28. INSTALL ENGINE ROOM SIDE COVER LH Installation

29. INSTALL ENGINE ROOM SIDE COVER RH Installation

30. INSTALL COOL AIR INTAKE DUCT SEAL Installation

31. CHECK FUNCTION THROTTLE BODY On-Vehicle Inspection
