Removal

4GR-FSE EMISSION CONTROL: HEATED OXYGEN SENSOR (for Sensor 2): REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner deployment.

2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission) Removal

3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) Removal

4. REMOVE UPPER CONSOLE PANEL NO. 1 GARNISH (for Automatic Transmission) Removal

5. REMOVE UPPER CONSOLE PANEL NO. 2 GARNISH (for Automatic Transmission) Removal

6. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) Removal

7. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Removal

8. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) Removal

9. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY Removal

10. REMOVE CONSOLE BOX REGISTER ASSEMBLY Removal

11. REMOVE CONSOLE BOX Removal

12. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL Removal

13. REMOVE FRONT SEAT TRACK BRACKET COVER OUTER LH (for Power Seat, 4WD) Removal

14. REMOVE FRONT SEAT TRACK BRACKET COVER INNER LH (for Power Seat, 4WD)

15. REMOVE FRONT SEAT TRACK COVER REAR OUTER LH (for Power Seat, 4WD) Removal

16. REMOVE FRONT SEAT TRACK COVER REAR INNER LH (for Power Seat, 4WD)

17. REMOVE FRONT SEAT ASSEMBLY (for Power Seat, 4WD) Removal

18. REMOVE FRONT SEAT INNER TRACK BRACKET COVER (for Manual Seat, 4WD) Removal

19. REMOVE FRONT SEAT OUTER TRACK BRACKET COVER (for Manual Seat, 4WD) Removal

20. REMOVE REAR SEAT OUTER TRACK BRACKET COVER (for Manual Seat, 4WD) Removal

21. REMOVE REAR SEAT INNER TRACK BRACKET COVER (for Manual Seat, 4WD) Removal

22. REMOVE FRONT SEAT ASSEMBLY (for Manual Seat, 4WD) Removal

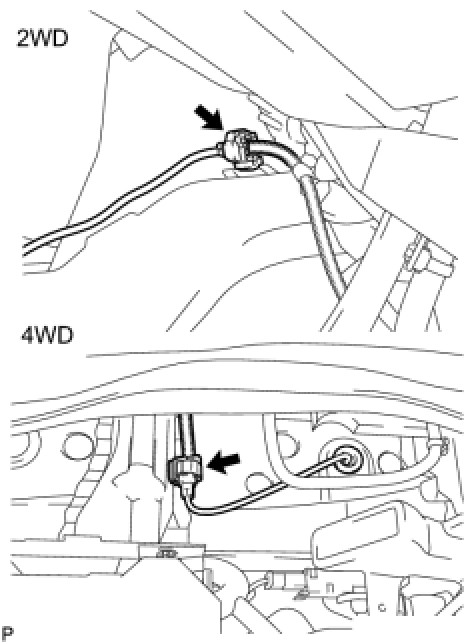

23. DISCONNECT CONNECTOR

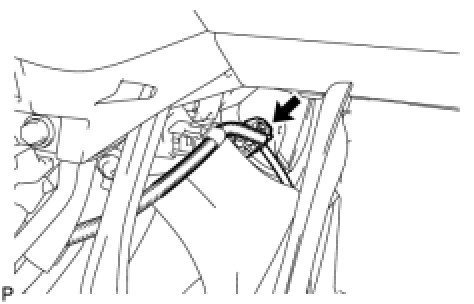

(a) Remove

(b) Disconnect the oxygen sensor connector.

24. REMOVE OXYGEN SENSOR (for 2WD)

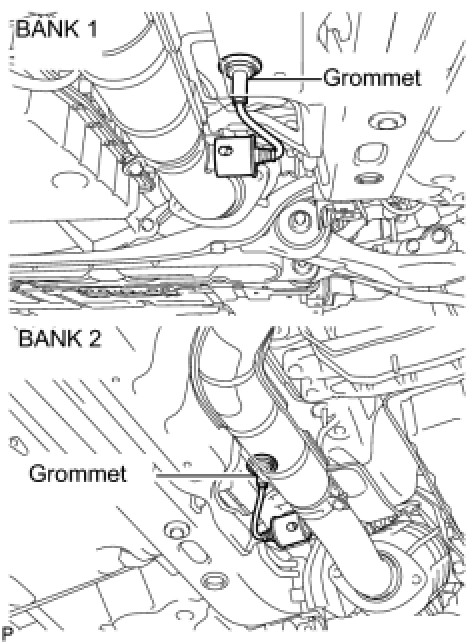

(a) Disconnect the grommet to the body.

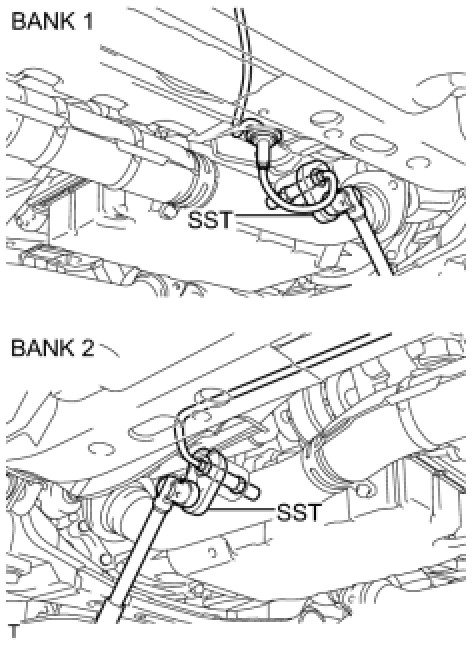

(b) Using the SST, remove the oxygen sensor to the exhaust pipe assembly.

SST : 09224-00010

25. REMOVE OXYGEN SENSOR (for 4WD)

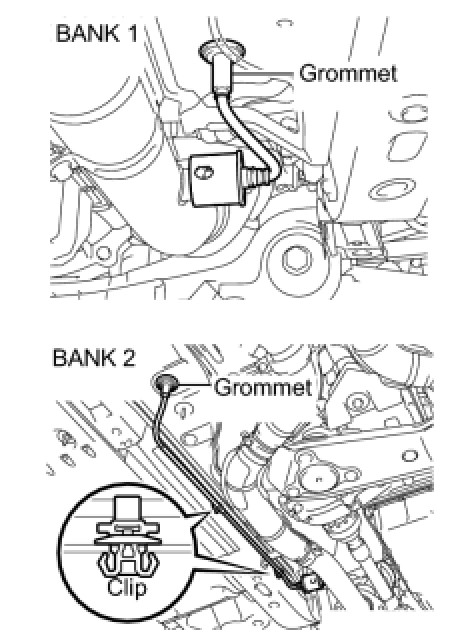

(a) Remove the grommet and 2 clips.

(b) Using SST, remove the heated oxygen sensor.

SST : 09224-00010
