Home >> Lexus >> 2012 >> IS 250 AWD V6-2.5L (4GR-FSE) >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Application and ID >> Cowl Side J/B LH

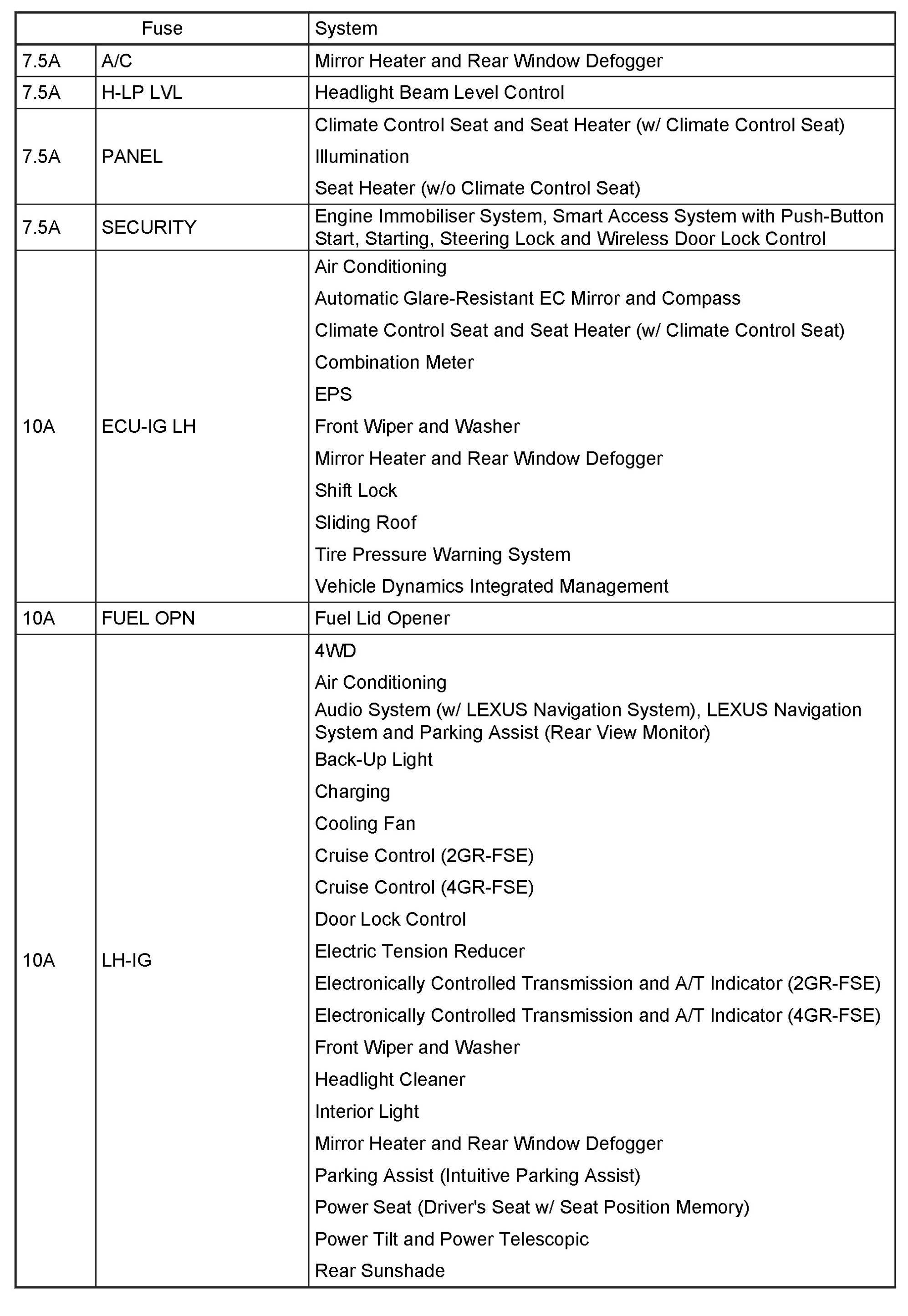

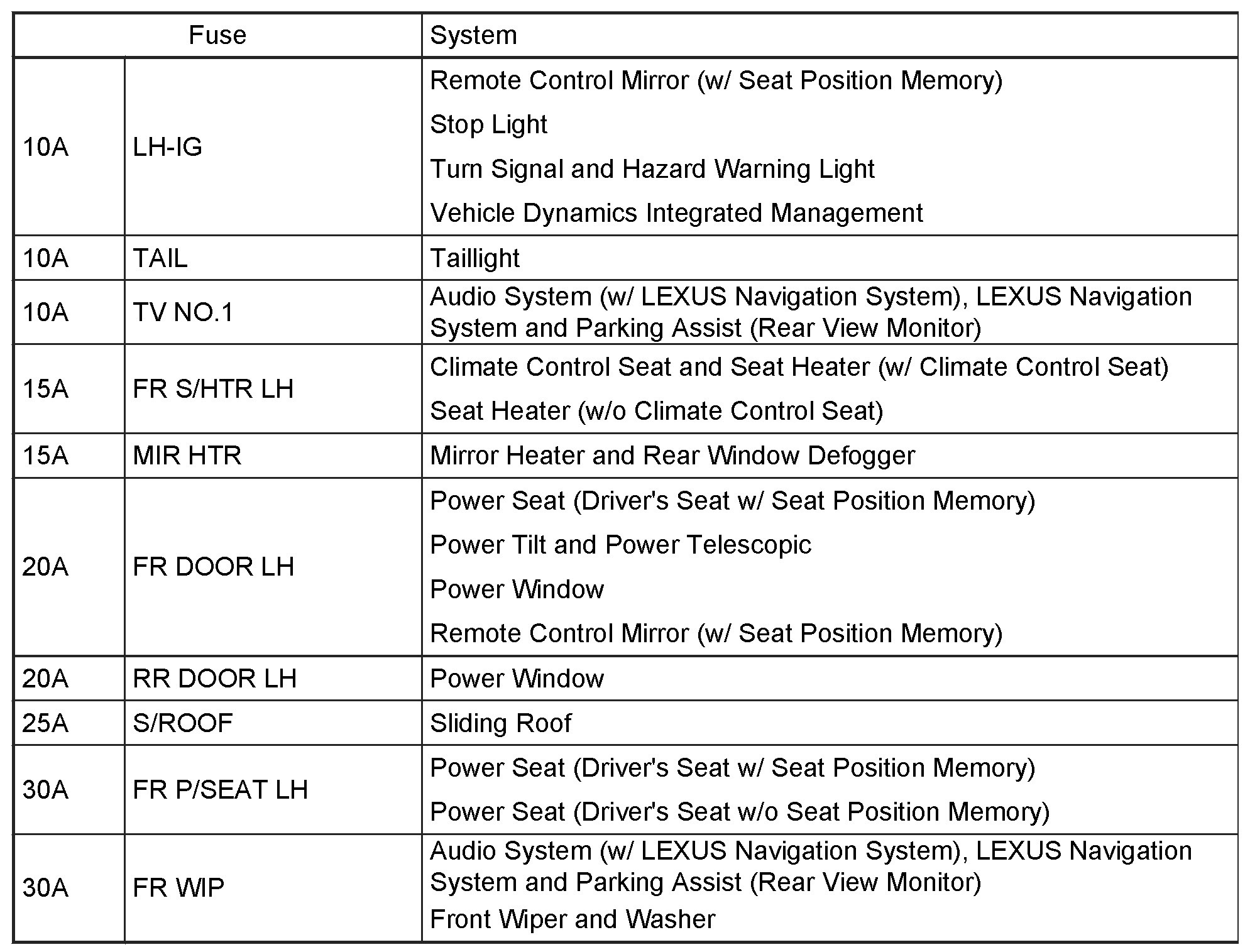

Cowl Side J/B LH

Cowl Side J/B LH:




Cowl Side J/B LH:




Cowl Side J/B LH:
