Component Tests and General Diagnostics

LIGHTING: SIDE TURN SIGNAL LIGHT ASSEMBLY: INSPECTION

1. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY

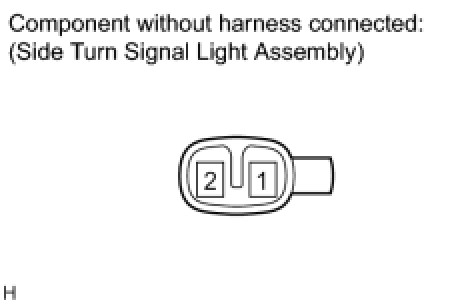

(a) Connect a positive (+) lead from the battery to terminal 1 and a negative (-) lead to terminal 2.





(b) Check that the side turn signal light assembly comes on.

OK:

The side turn signal light assembly comes on.

If the result is not as specified, replace the side turn signal light assembly.
