Headlamp Alignment Sensor: Testing and Inspection

LIGHTING: HEIGHT CONTROL SENSOR: INSPECTION

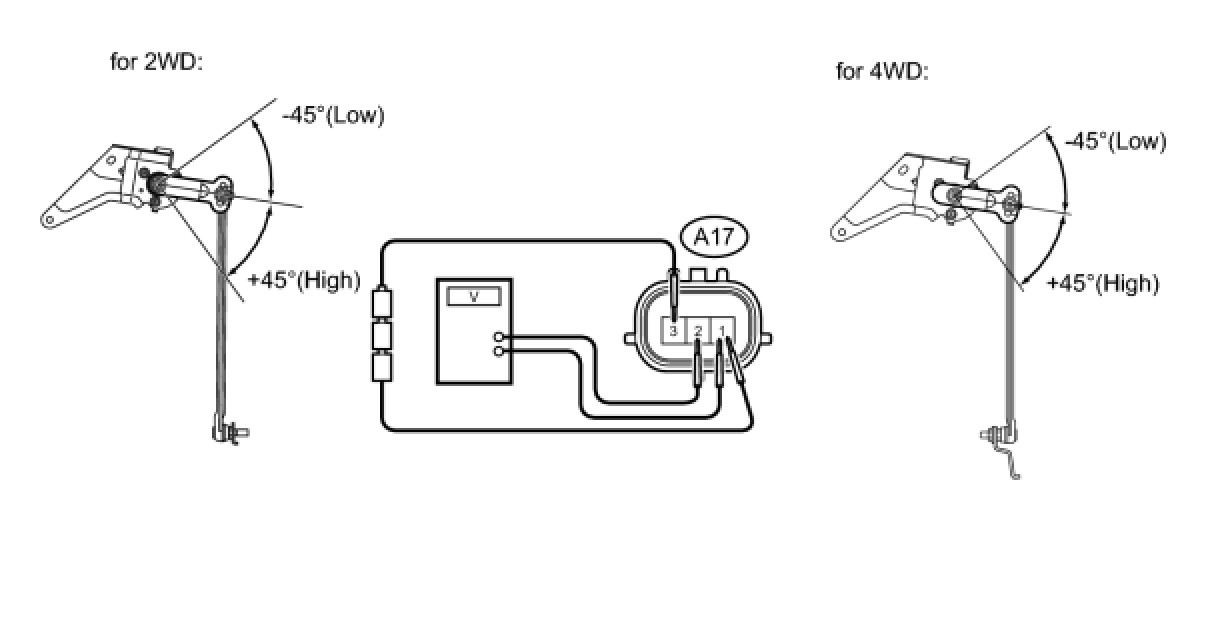

1. INSPECT FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

(a) Connect 3 dry cell batteries (1.5 V) in series.





(b) Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead from the battery to terminal 1.

(c) Measure the voltage between terminals 2 and 1 while slowly moving the link up and down.

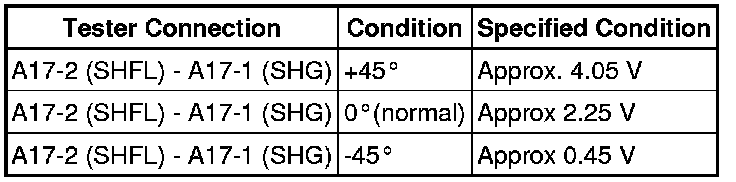

Standard voltage:





If the result is not as specified, replace the sensor.

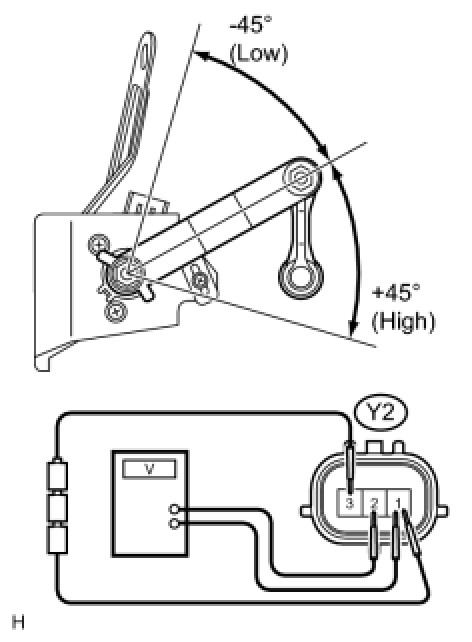

2. INSPECT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

(a) Connect 3 dry cell batteries (1.5 V) in series.





(b) Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead from the battery to terminal 1.

(c) Measure the voltage between terminals 2 and 1 while slowly moving the link up and down.

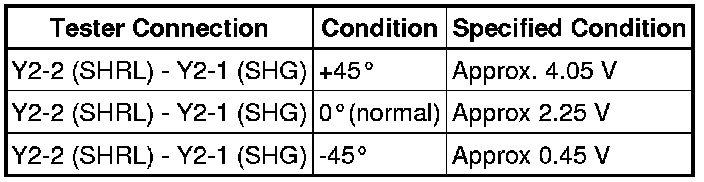

Standard voltage:





If the result is not as specified, replace the sensor.
