Removal

LIGHTING: LICENSE PLATE LIGHT ASSEMBLY: REMOVAL

1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP

2. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE Disassembly

3. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE Disassembly

4. REMOVE LUGGAGE COMPARTMENT DOOR COVER

5. REMOVE LUGGAGE COMPARTMENT DOOR REINFORCEMENT

6. REMOVE LUGGAGE KEY ELECTRICAL SWITCH

7. REMOVE TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System) Removal

8. REMOVE REAR LIGHT ASSEMBLY LH Removal

9. REMOVE REAR LIGHT ASSEMBLY RH

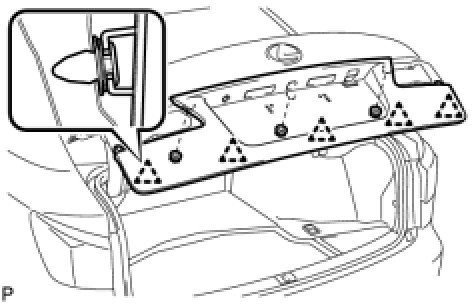

10. REMOVE LUGGAGE COMPARTMENT DOOR GARNISH ASSEMBLY

(a) Remove the 3 nuts.





(b) Disengage the 5 clips and remove the luggage compartment door garnish assembly.

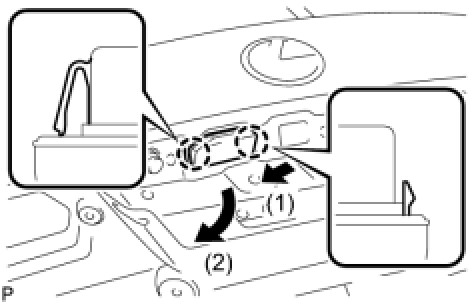

11. REMOVE LICENSE PLATE LIGHT ASSEMBLY

(a) Disconnect the connector.





(b) Disengage the 2 claws and remove the license plate light assembly as shown in the illustration.
