LIGHTING: GLOVE BOX LIGHT: INSTALLATION

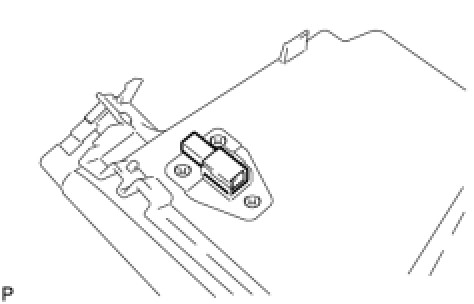

1. INSTALL GLOVE BOX LIGHT ASSEMBLY

(a) Install the glove box light assembly.





2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

3. INSTALL PASSENGER SIDE KNEE AIRBAG ASSEMBLY Installation

4. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

5. INSTALL SIDE INSTRUMENT PANEL RH Installation

6. INSTALL FRONT DOOR OPENING TRIM COVER RH Installation

7. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)

8. INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)

9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

10. INSPECT SRS WARNING LIGHT
